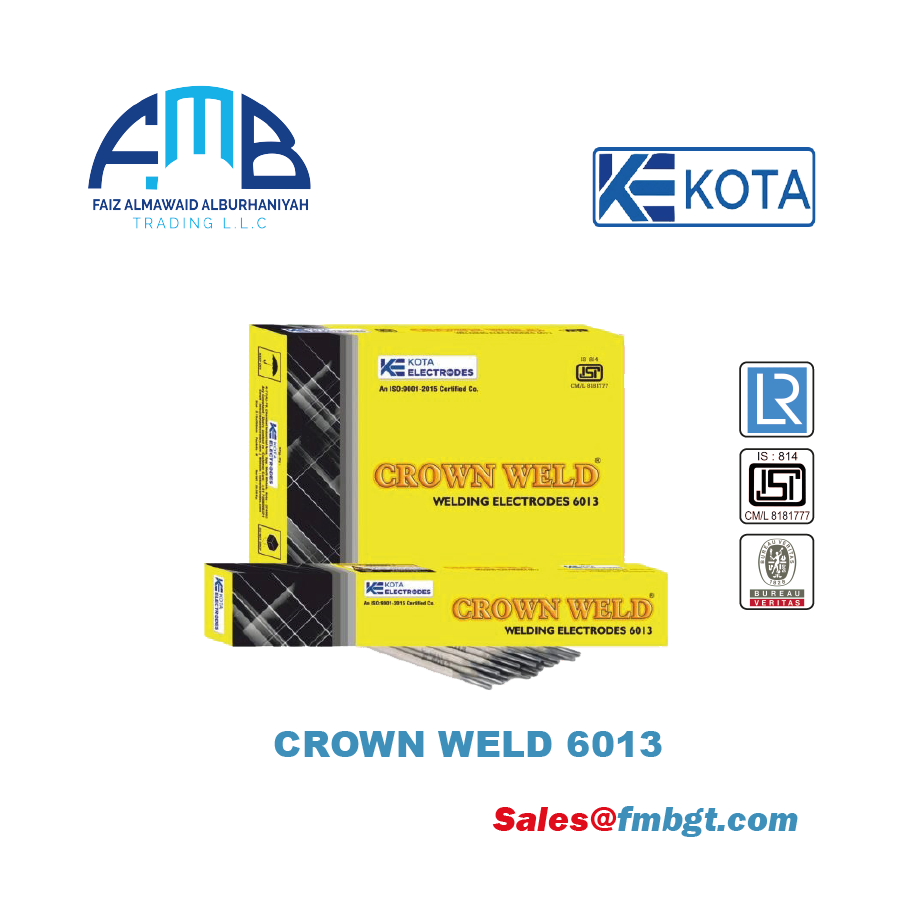

CROWN WELD 6013 is a medium rutile-coated, general-purpose mild steel welding electrode specially manufactured for the best quality weld. Low spatter, adequate penetration, easy slag removal (self-pealing slag), and finely rippled, smooth beads are the special features of Crown Weld electrodes. Mechanical properties are very good and consistent. It is easy to operate on an AC as well as a DC welding power source in all conventional welding positions.



APPLICATIONS

Railway Wagons, Fire Boxes, Auto Bodies, Ship building, Light Structural works, Machine Base & Machinery
Construction, Pipe Lines, Storage Tanks, Bridges, Building Construction Works, Mild Steel furniture etc.



CHEMICAL ANALYSIS OF ALL WELD METAL

Carbon%	Manganese%	Silicon%	Sulphur%	Phosphorous%
0.12 max	0.32-0.55	0.30 max	0.030 max	0.030 max



MECHANICAL PROPERTIES OF ALL WELD METAL

Yield strength	Ultimate Tensile Strength	Elongation%	CVN Impact at RT
330 N/mm2 min	410-540 N /mm2	22-26%	50-70 joules



CURRENT & CONDITIONS : USE AC ( 50 OCV ) OR DC ( +/ - )

SIZE (mm)	2.50x350	3.15x350	3.15x450	4.00x350	4.00x450	5.00x450
Amps	60-90	100-140	100-140	140-200	140-200	180-240
