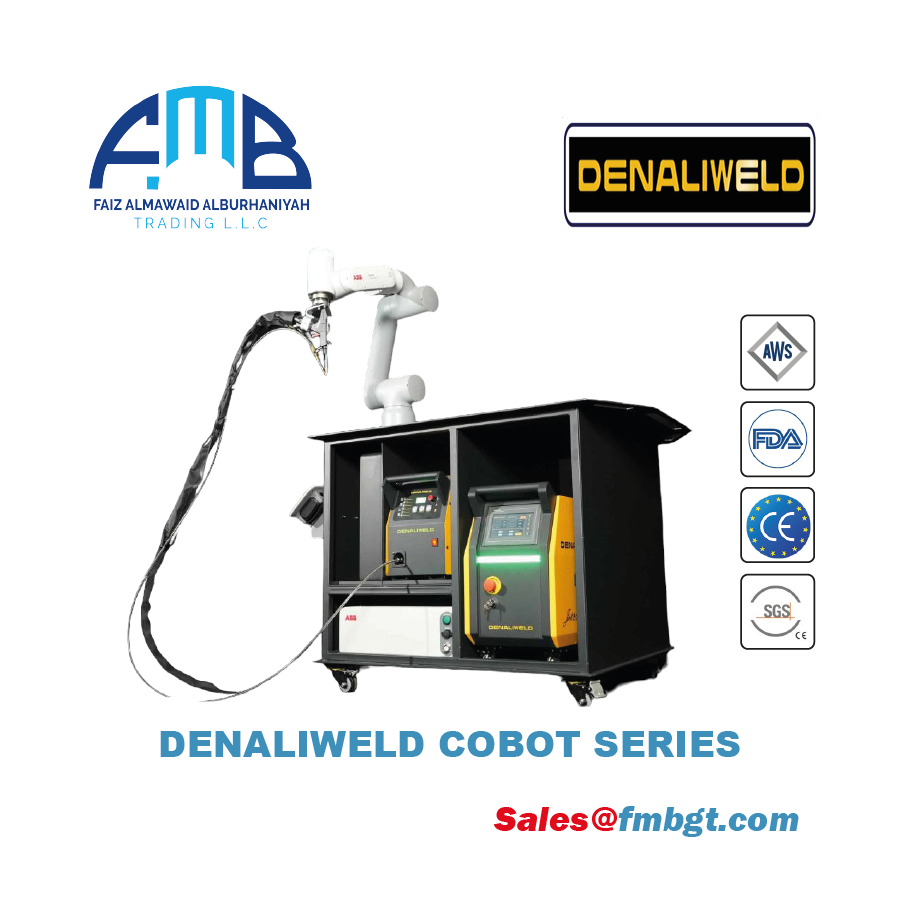

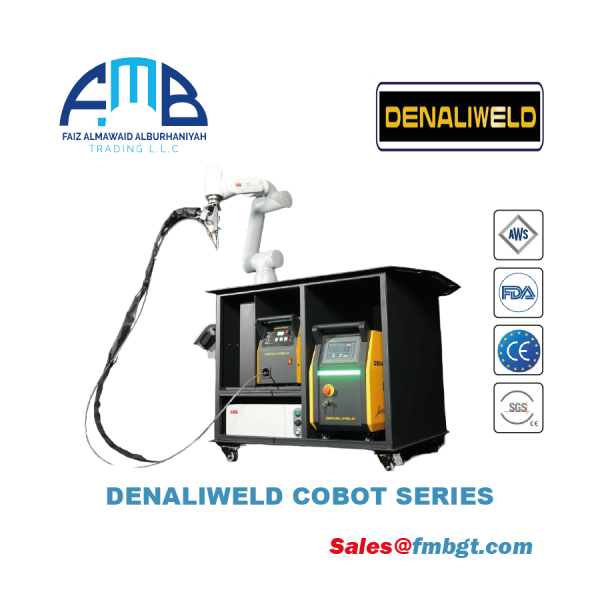

DenaliWeld COBOT Series

Description

DenaliWeld collaborative robots (cobots) have entered the marketplace strongly, and they offer lightweight, flexible, and intelligent designs at an affordable investment. Best-in-class speed, safety, and ease of use will take your business to the next level. Staff can quickly teach collaborative robots specific welding applications and have them do the actual welding, while operators can focus on different activities. Allowing for maximum flexibility and efficiency.

Basic advantages

Strategic partnership with ABB Compatible with both Denalweld air cooled and water cooled models.
Modular designed for uncomplicated maintenance and repair.
Cobot intelligent programs with simple interface All parameters pre-set, one click operation.
Welding data acquisition system which helps track operation and cost calculations.
One click switches to Cobot/Robot automation welding system** with DENALIWELD ROBOX™
**DENALIWELD welding machines are compatible with most cobot manufacturers.
Using an Automatic Welding Head (Gofa5/ 10/12) could provide realtime power changing during the whole welding procedure.
Seam Tracking system available for option.

ABB Strategic Cooperation

DENALIWELL and ABB conduct joint testing in the field of welding Cobots to ensure maximum performance and functionality to meet user needs, and offer a variety of ABB Cobot model choices

**DENALIWELD welding machines can compatible with most cobots in the market.

Manual Welding Easily Switches to Automated Welding

DenaliWeld collaborative robotic welding solutions utilize handheld welding torches. The laser welding machine is equipped with a manual/automatic switching button to quickly switch between handheld and automatic welding.

Simple and Easy to Use

Designed for easy and fast integration and setup, regardless of the robotic welding application

GoFa 5 GoFa 10 GoFa 12

Technical Parameters
Specification	GoFa 5	GoFa 10	GoFa 12
Reach (mm)	950 (wrist) 1050 (flange)	1520 (wrist) 1620 (flange)	1270 (wrist) 1370 (flange)
Payload (kg)	5	10	12
Arm load (kg)	1 (mounted on axis 4)	1 (mounted on axis 2, 3, or 4)	1 (mounted on axis 2, 3 or 4)
Number of axes	6	6	6
Protection	IP54	IP67	IP67
Mounting	Any angle, including table mounting, wall mounting, and ceiling mounting
Controller	OmniCore C30
Customer power supply	24V/2A supply
Customer signals	4 signals (for IO, Fieldbus, or Ethernet)
Tool flange	Standard ISO 9409-1-50
Functional safety	SafeMove Collaborative included all safety functions certified to Category 3, PL d
Max TCP Velocity	2,2 m/s	2 m/s	2 m/s
Max TCP acceleration (Controlled motion for nominal load	36,9 m/s²	28 m/s²	27 m/s²
Max TCP acceleration (e-stop for nominal load)	61,6 m/s²	94 m/s²	79 m/s²
Pose repeatability	0,02 mm	0,02 mm	0,02 mm
Dimensions robot base	165 x 165 mm	200 x 200 mm	200 x 200 mm
Weight	28 kg	51 kg	48 kg
