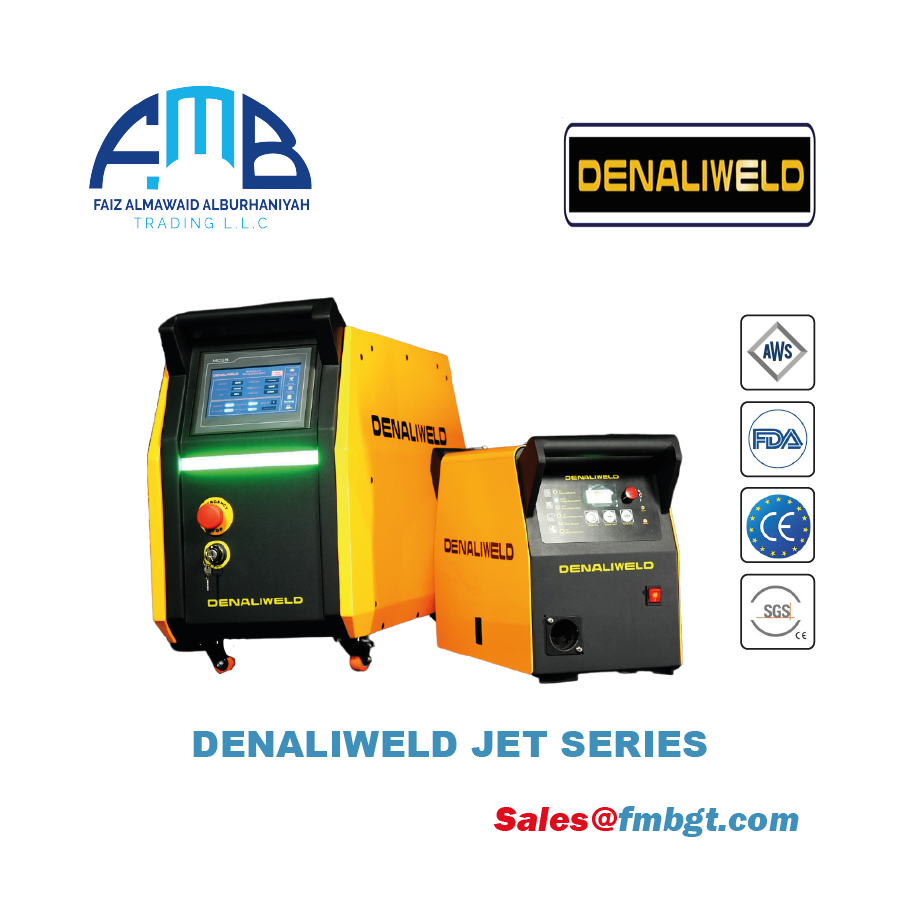

DenaliWeld Laser Source

Accurate output and always comes with full power.

• Patented CUAL mosaic laser source, continuous operation, reliable for -10℃ to 55℃ ( 14℉ to 130℉).
• DenaliWeld independently designed laser control system, which produces a smooth output curve which makes a better weld.





DenaliWeld Welding Control System

• Easy to use, all parameters can be quickly adjusted
• Quickly adjust the laser position without worrying about laser deviation
• More safety settings for better protection of users and observers
• Accurate preset parameters that can be selected with a simple click to start welding

DenaliWeld Laser welding head

• 3-in-1 multifunctional laser head with welding, remote cleaning and seam cleaning functions
• Intuitive status display with indicator lights to keep track of the machine’s status
• Individual air-cooled design channel, four hours (with test records) of stable operation without overheating
• Ergonomically designed welding machine with a Physical safety off button for easy stop / start even with welding gloves on



Emergency stop at will

An extra emergency stop button is positioned on the laser head which allows the users to shut down the machine immediately thereby reducing any potentially harmful occurrences.



Automatic Wire Feeder







• All newly designed automatic wire feeders could feed up to 2mm of wire.
• Double Wire feeding available.
• Wire feeder is designed to complement the welding machine.

• Physical button, easy to operate even with welding gloves on.

Technical Parameters
Item	JET1500	JET2000
Laser Power	1500W	2000W
Operating System	3in1 / Cleaning	3in1 / Cleaning
Laser Wavelength	1060-1100 NM	1060-1100 NM
Fiber Length	Approx. 10 m	Approx. 10 m
Operating Mode	Continuous/Modulated	Continuous/Modulated
Oscillation Operation Mode	Single, Various Spots, Line	Single, Various Spots, Line
Positioning	Laser red dot	Laser red dot
Air Pressure	10-15L/min	10-15L/min
Voltage	AC220V/380V±5%	AC220V/380V±5%
Power Consumption	6.5kw	7.7KW
Frequency	50/60 HZ	50/60 HZ
Currency	29A/10A	35A/14A
Focus Lenght	150mm	150mm
Welding Speed	0-80cm/min	0-90cm/min
Cooling System		Air cooling
Laser Protecion Method		security lock + safety button
Touch Panel		Monitor + PLC
Wire Feeder		Single/Double Motor Automatic "push" and "pull"
Wire Thickness in Automatic Mode		0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
Machine Weight	Approx. 68kg/150lb	Approx. 74kg/163lb
Machine Measurements		Height 736mm, Width 433mm, Length 883mm
3in1 Laser Head Weight		Approx. 900g/1.98lb
Cleaning Head		Approx. 980g/2.16lb



Basic advantages

• Patented CUAL mosaic laser source, reliable continuous operation, -10°C to 55 °C（14°F to 130°F ）
• Modular designed, easy for maintenance and repair
• Jet series portable laser welders are only 90 pounds which makes them the Smallest in size and lightest in weight.
• Seam tracking systems are available as an option.
• Three functions in one machine: Welding, Cleaning and Seam cleaning.
• All parameters are pre-set, one click operation.
• Welding data acquisition system helps track operation and cost calculations.
• One click switches to Cobot/Robot automation welding system.
• Adaptable with DENERGY™ portable power bank, which is designed to power the machine working off the grid for a continuous 60mint.
