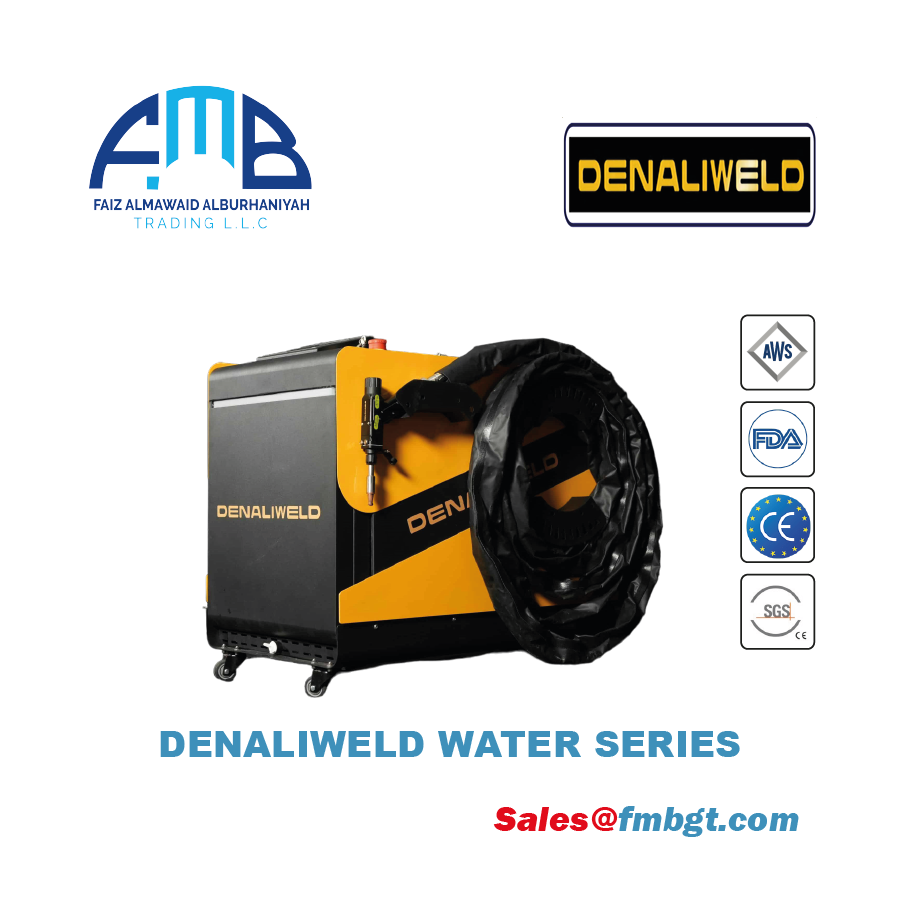

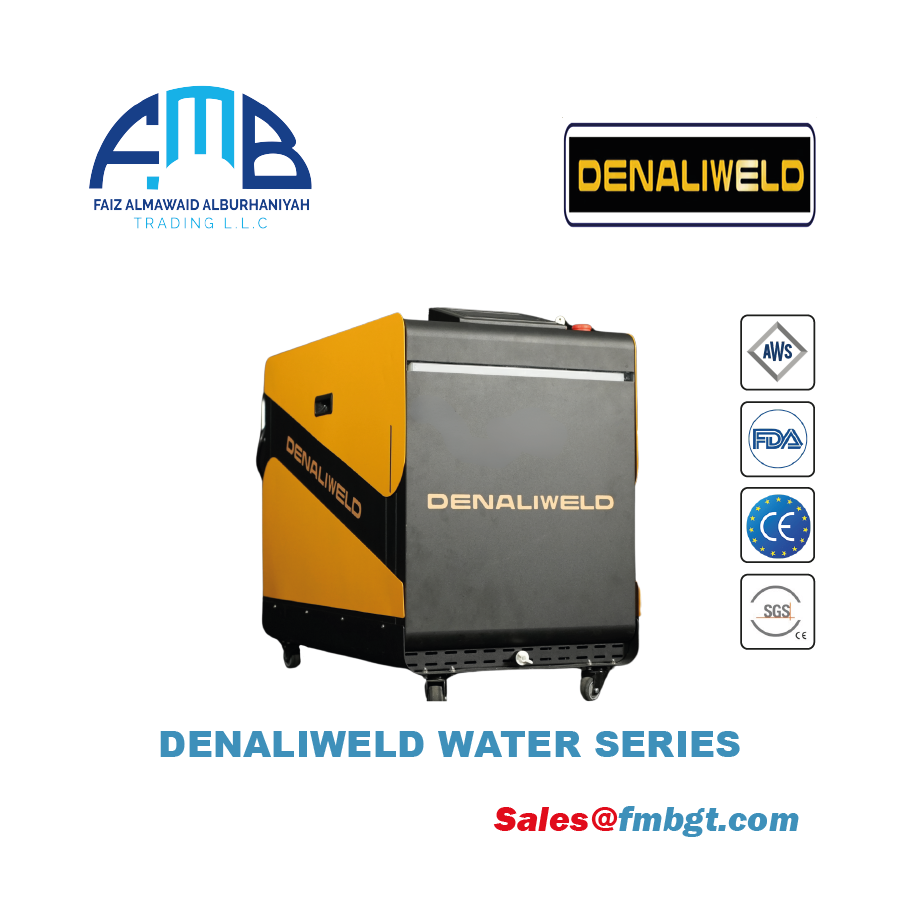

DenaliWeld Water Cooled Laser Source
Accurate output and always comes with EXTRA power.
DenaliWeld Welding Control System
Easy to use, all parameters can be quickly adjusted
Quickly adjust the laser position without worrying about laser deviation
More safety settings for better protection of users and observers
Accurate preset parameters that can be selected with a simple click to start welding
DenaliWeld Laser Welding Head
3-in-1 multifunctional laser head with welding, remote cleaning and seam cleaning functions
Individual air-cooled design channel, four hours (with test records) of stable operation without overheating
Ergonomically designed welding machine with a Physical safety off button for easy stop / start even with welding gloves on
Emergency stop at will
An extra emergency stop button is positioned on the laser head which allows the users to shut down the machine immediately thereby reducing any potential harmful occurrences.
Automatic Wire Feeder
All newly designed automatic wire feeders could feed up to 2mm of wire.
Double Wire feeding available
Wire feeder is designed to complement the welding machine
Physical button, easy to operate even with welding gloves on
Water Chiller
Designed with independent modules for easy maintenance and replacement
Accurate calculation and design of cooling capacity, providing maximum cooling effect with minimal power consumption, can meet the needs of long-term continuous operation
All use R410a refrigerant that meets environmental requirements
The Key of Cooling
We use the Copper+Aluminum heat exchanging system, compared with micro tube exchangers which are used on 99% of coolers in the market, our cooling unit could give much more reliable and efficient cooling to the laser source and machine, ensure the full load running of the welder.
Technical Parameters
|
|||
Laser Power
|
1500W
|
2000W
|
3000W
|
Operating System
|
3in1 / Cleaning
|
3in1 / Cleaning
|
3in1 (Cleaning Max. 2kw)
|
Laser Wavelength
|
1060-1100 NM
|
1060-1100 NM
|
1060-1100 NM
|
Fiber Length
|
15m (could customize to 20m)
|
15m (could customize to 20m)
|
15m (could customize to 20m)
|
Operating Mode
|
Continuous/Modulated
|
Continuous/Modulated
|
Continuous/Modulated
|
Oscillation Operation Mode
|
Single, Various Spots, Line
|
Single, Various Spots, Line
|
Single, Various Spots, Line
|
Positioning
|
Laser red dot
|
Laser red dot
|
Laser red dot
|
Gas flow rate
|
10-15L/min
|
10-15L/min
|
10-15L/min
|
Voltage
|
AC220V/380V±5%
|
AC220V/380V±5%
|
AC380V±5%
|
Power Consumption
|
7kw
|
9kw
|
11KW
|
Frequency
|
50/60 HZ
|
50/60 HZ
|
50/60 HZ
|
Currency
|
32A/19A
|
40A/24A
|
29A
|
Focus Lenght
|
150mm
|
150mm
|
150mm
|
Welding Speed
|
0-95cm/min
|
0-105cm/min
|
0-105cm/min
|
Cooling System
|
Water cooling
|
||
Laser Protecion Method
|
laser beam lock + security lock + safety button
|
||
Touch Panel
|
Monitor + PLC
|
||
Wire Feeder
|
Single/Double Motor Automatic
|
Single/Double Motor Automatic
|
Single/Double Motor Automatic
|
Wire Diameter in Automatic Mode
|
0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
|
||
Machine Weight
|
Approx. 80kg/176bl
|
Approx. 85kg/187bl
|
Approx. 90kg/198bl
|
Machine Measurements
|
Height 794mm, Width 497mm, Length 984mm
|
Height 794mm, Width 497mm, Length 984mm
|
Height 794mm, Width 497mm, Length 984mm
|
3in1 Laser Head Weight
|
Approx. 900g/1.98lb
|
||
3in1 Laser Head Size
|
L: 273.38mm, W: 36.5mm, H: 168.57mm
|
||
remark：
|
cleaning function Max. 2kw for opertion
|
||
