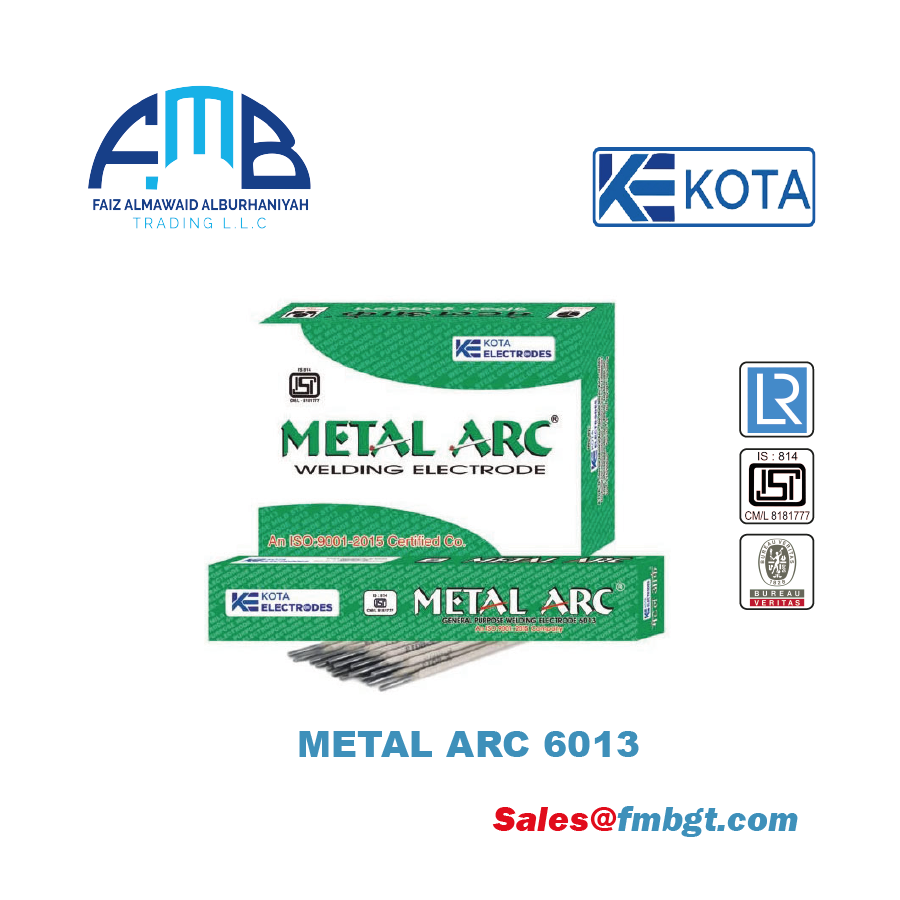

METAL ARC 6013 is a general-purpose, medium-coated, rutile-type welding electrode. It is specially designed for general fabrication work. Low spatter, adequate penetration, easy removal of slag, smooth and stable arc, and smooth weld bead appearance are the special features of this electrode.



APPLICATIONS

Railway Wagons, Boilers, Fire Boxes, Auto Bodies, Ship building, Heavy Structural works, Heavy Machine Base & Machinery Construction, Pipe Lines, Storage Tanks, Bridges, Building Construction Works, Mild Steel furniture etc.



CHEMICAL ANALYSIS OF ALL WELD METAL

Carbon%	Manganese%	Silicon%	Sulphur%	Phosphorous%
0.12 max	0.62 Max	0.45 max	0.045 max	0.045 max



MECHANICAL PROPERTIES OF ALL WELD METAL

Yield strength	Ultimate Tensile Strength	Elongation%	CVN Impact at RT
330 N/mm2 min	410-540 N /mm2	16%	47 joules



CURRENT & CONDITIONS : USE AC 50 (OCV) OR DC (+/ -)

SIZE (mm)	2.50x350	3.15x350	4.00x450	5.00x450
Amps	80-100	120-160	160-180	180-220
