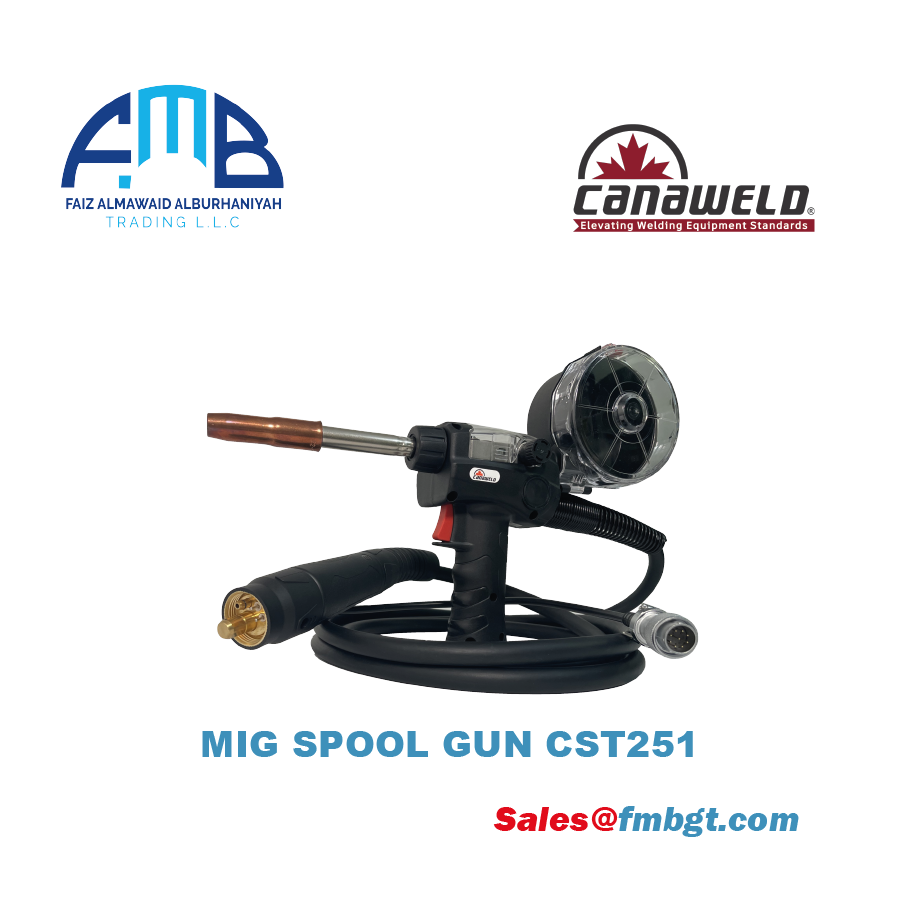

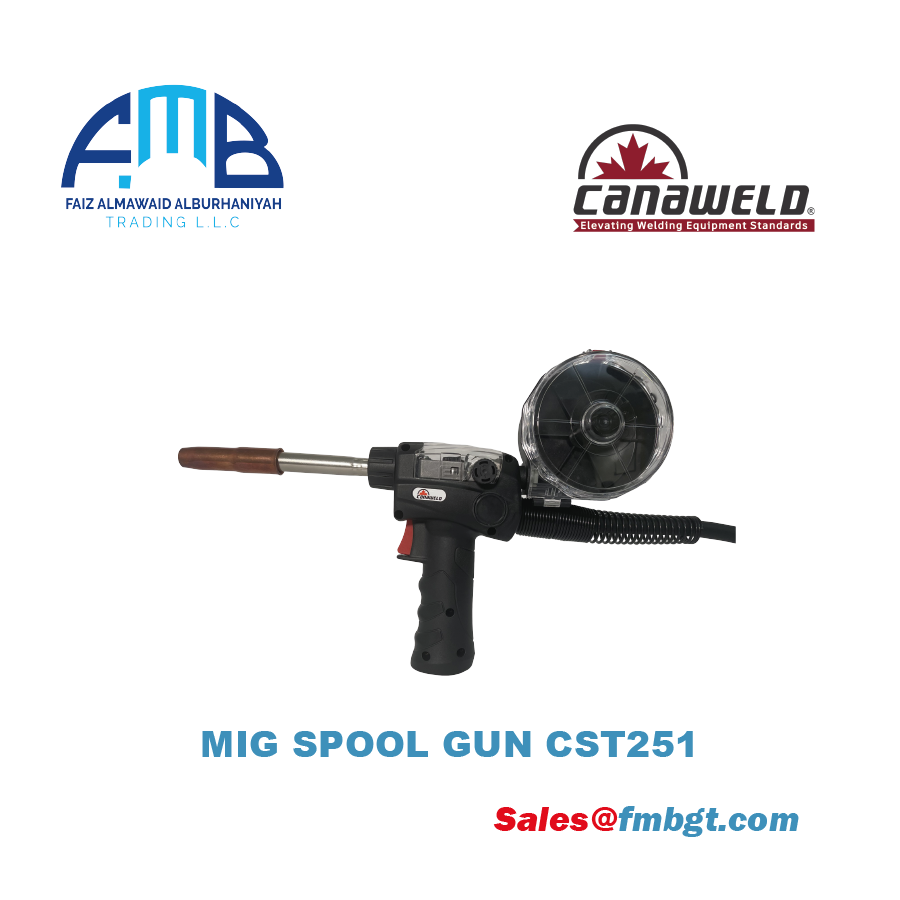

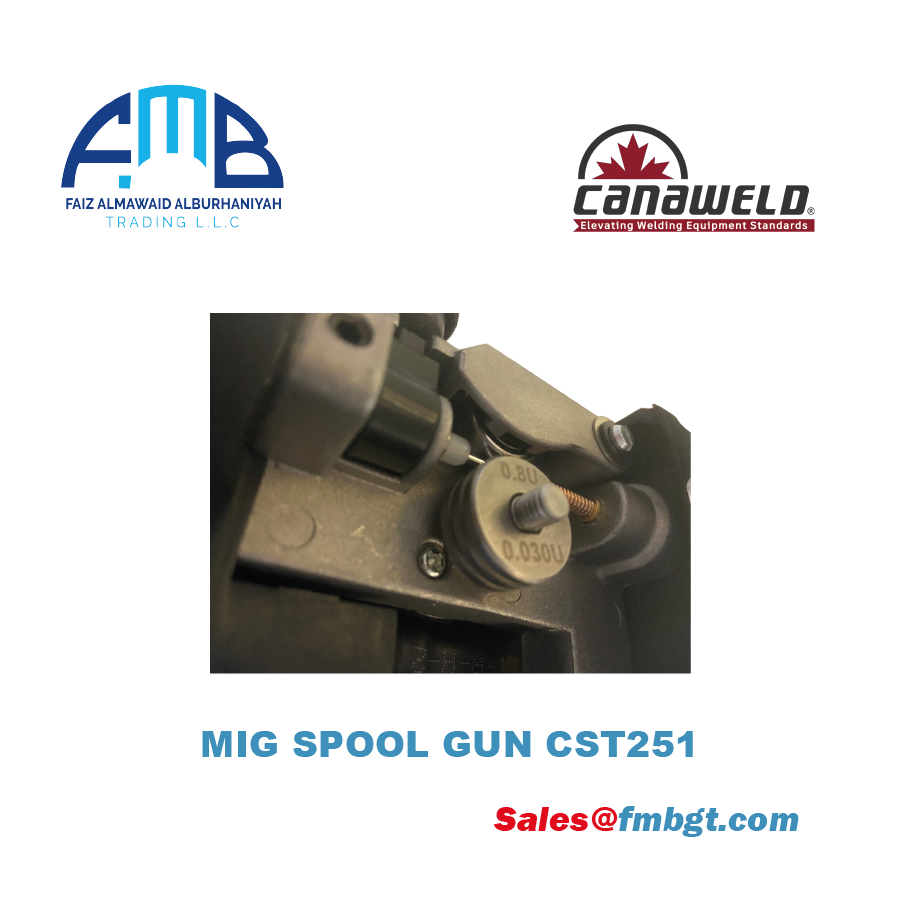

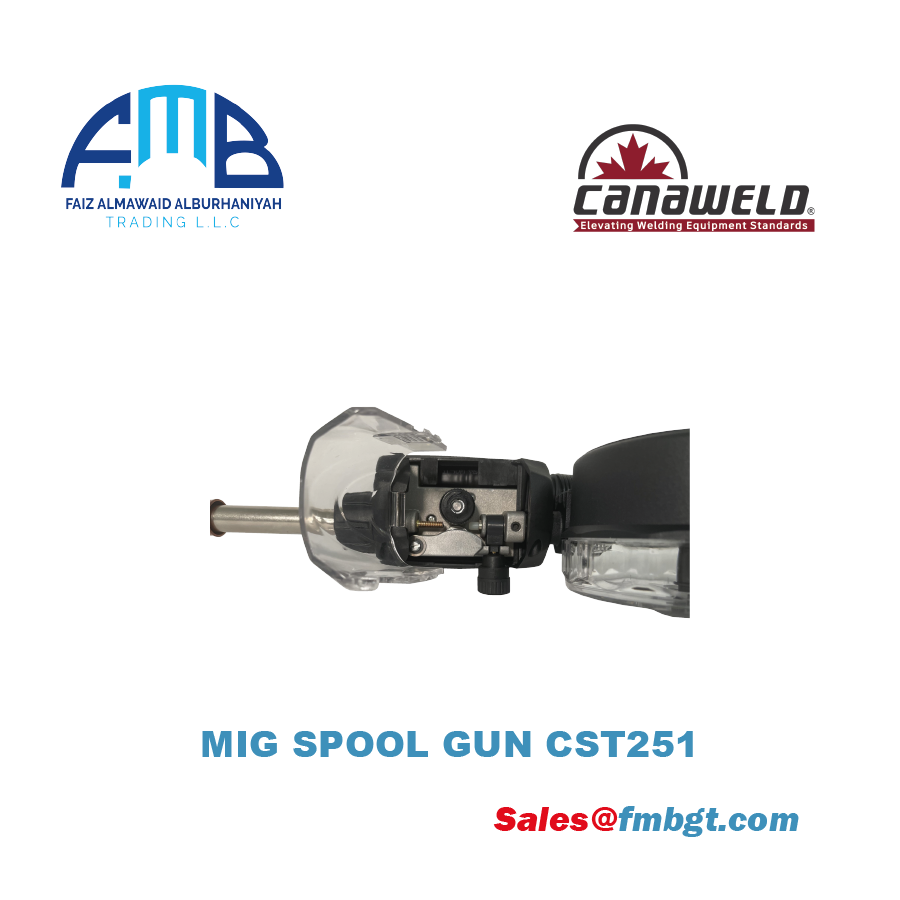

Successful welding with aluminum requires a stable arc. With its short feed distance, this spool gun provides a steady, reliable feed of the soft aluminum wire. Canaweld Spool guns improve the “feed ability” of aluminum and other type of wires that are difficult to feed, through the standard MIG gun, by locating a small 1 lb. 1/ 4-inch diameter spool of wire on a pistol-grip style gun. CST251 spool gun is a 200 A lightweight, well balanced semi-automatic spool gun, with dual groove drive rolls, heavy duty and all metal wire feeder and is easy to set up. It has been designed for easy and reliable aluminum wire feeding with a variety of CV power sources and engine-driven welders. The control connector is metal-made too. It features easy access to the drive assembly which reduces service time and allows for routine maintenance without disassembly of gun.

Processes

• MIG (GMAW)
• Pulsed MIG (GMAW-P) with pulsing power source
• FCAW

Wire Types

• Aluminum
• Steel
• Flux Cored Wire

Industrial Applications

• Trucks Trailers and Railcars
• Travel and Cargo Trailers.
• Recreational Vehicles.
• Aerospace Hardware
• Boat/Yacht Building
• Fabrication
• Automotive/Motorcycle Frames
• Sports products – Scooters/Bicycles
• Wheels
• Furniture
• Ladders and frames
• Ship Decks
• Sign Manufacturers
• General Repair And Maintenance

Technical specification

Welding Output:

200 Amps at 60% Duty Cycle

Recommended Wire Diameter:

For Aluminum:

0.030″/0.035″/0.040”/(3/64”) (0.8/0.9/1.0/1.2 mm)

For Solid wire:

0.023″/0.030″/0.035”/0.40” (0.6/0.8/0.9/1.0 mm)

For Flux Cored wire:

0.030″/0.035″/0.040” (0.8/0.9/1.0 mm)

Motor Voltage:

24 Volt DC

Head and Nozzle style:

Tweco Style

Maximum Spool Size (Al, FCAW or Solid wire):

4″ /102 mm

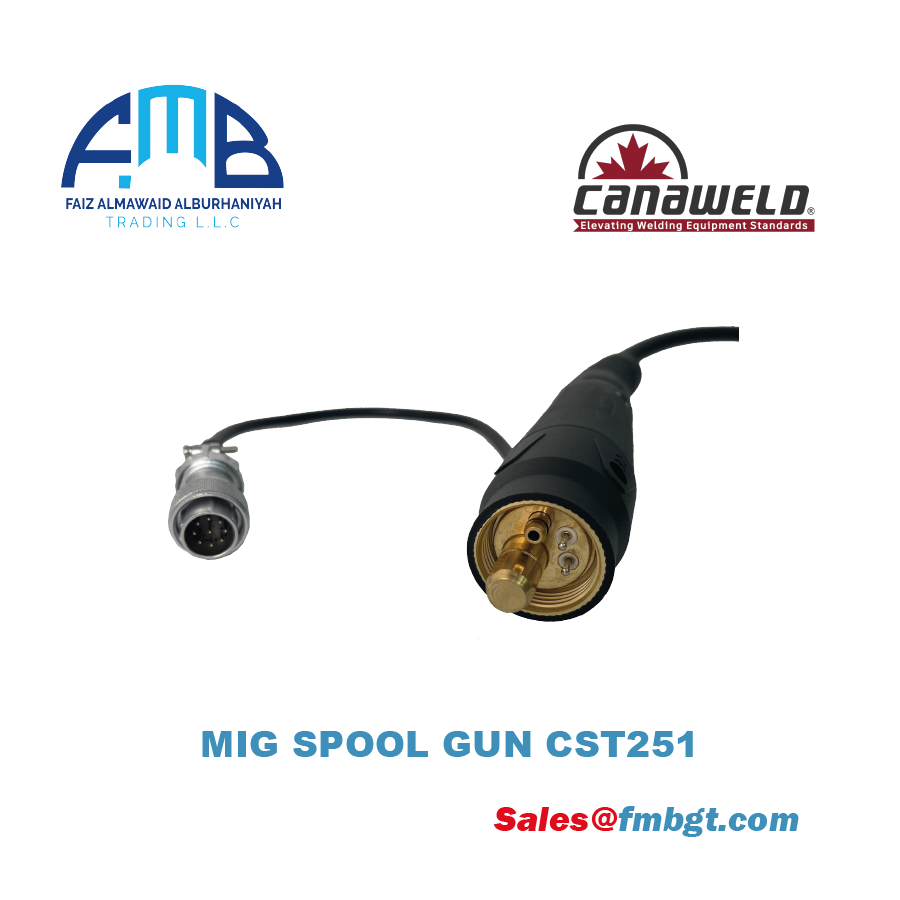

Central Connector type:

Euro connector

Copper Cable Length:

10/13/20 ft. (3/4/6 meter).

Weight (Gun Only):

2.71 Lb /1.23 Kg
