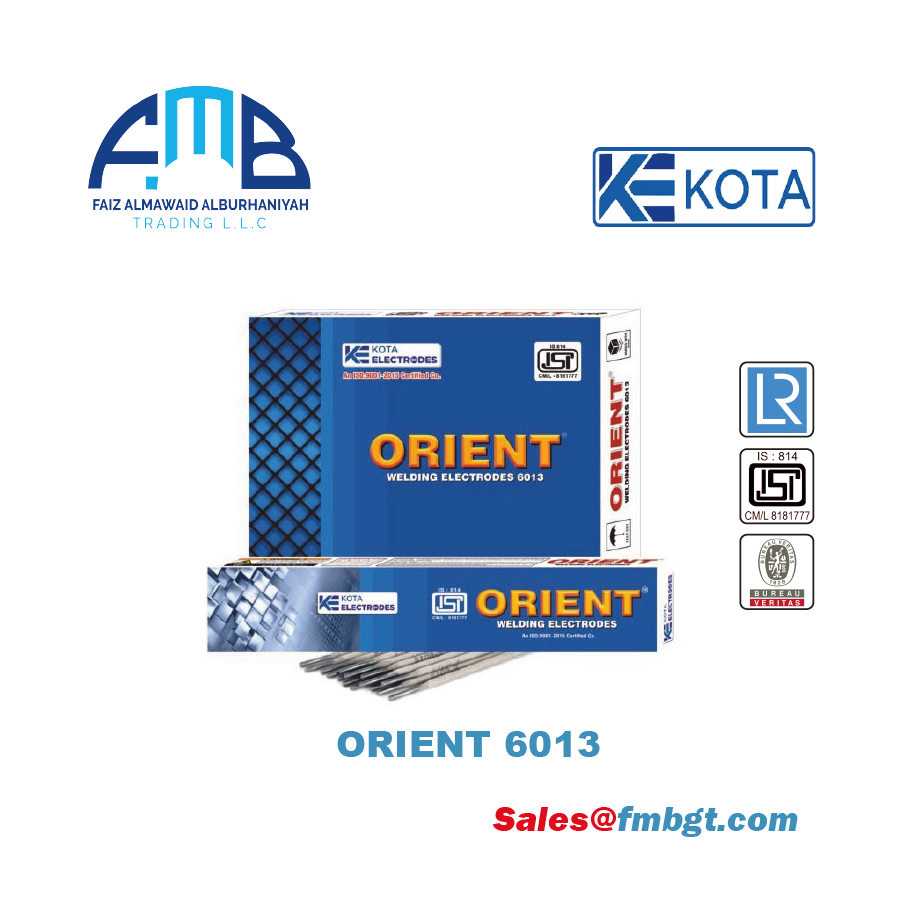

ORIENT 6013 is a medium-heavy, rutile-coated, general-purpose mild steel welding electrode. specially manufactured for RADIOGRAPHIC quality weld. Low splatter, adequate penetration, easy slag removal, and finely rippled, smooth beads are the special features of Orient electrodes. Mechanical properties are up to mark and consistent. easy to operate on an AC as well as DC welding power source in all conventional welding positions.



APPLICATIONS

Railway Wagons, Boilers, Fire Boxes, Auto Bodies, Ship building, Heavy Structural works, Heavy Machine Base & Machinery Construction, Pipe Lines, Storage Tanks, Bridges, Building Construction Works, Mild Steel furniture etc.



CHEMICAL ANALYSIS OF ALL WELD METAL

Carbon%	Manganese%	Silicon%	Sulphur%	Phosphorous%
0.12 max	0.38-0.65	0.35 max	0.04 max	0.04 max



MECHANICAL PROPERTIES OF ALL WELD METAL

Yield strength	Ultimate Tensile Strength	Elongation%	CVN Impact at 0°C
330 N/mm2 min	410-540 N /mm2	22-28%	50-70 joules



CURRENT & CONDITIONS : USE AC 50 (OCV) OR DC (+/ -)

SIZE (mm)	2.50x350	3.15x350	3.15x450	4.00x350	4.00x450	5.00x450
Amps	60-90	100-140	100-140	140-200	140-200	180-240
