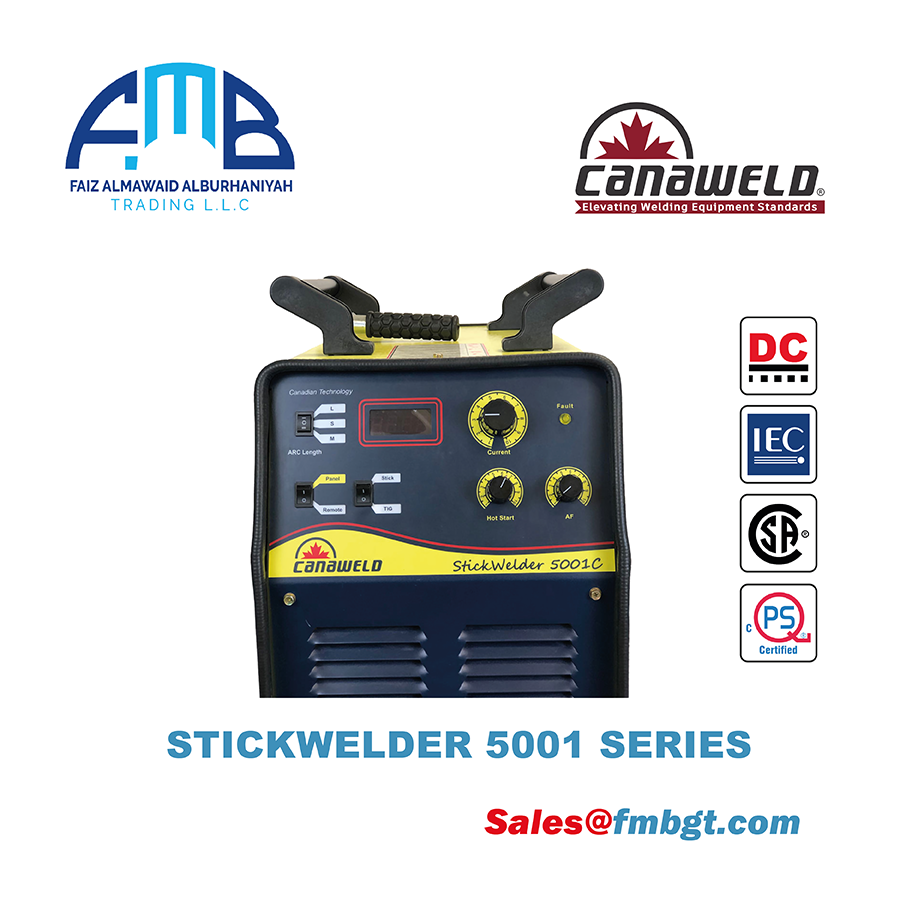

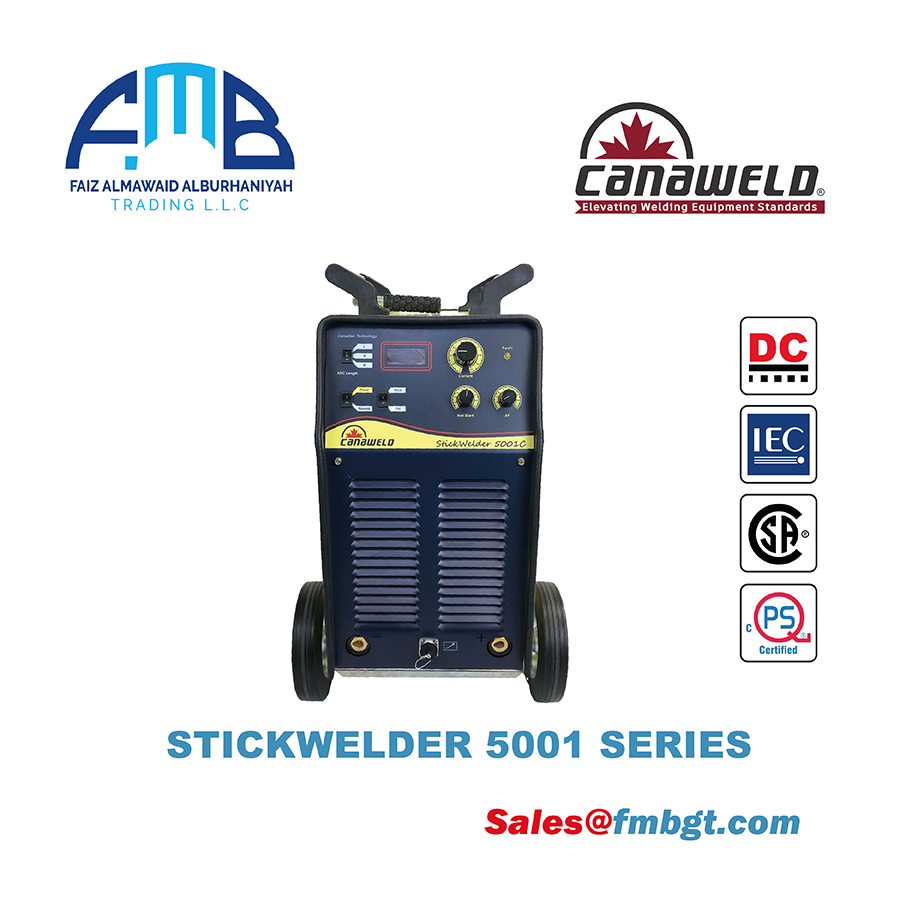

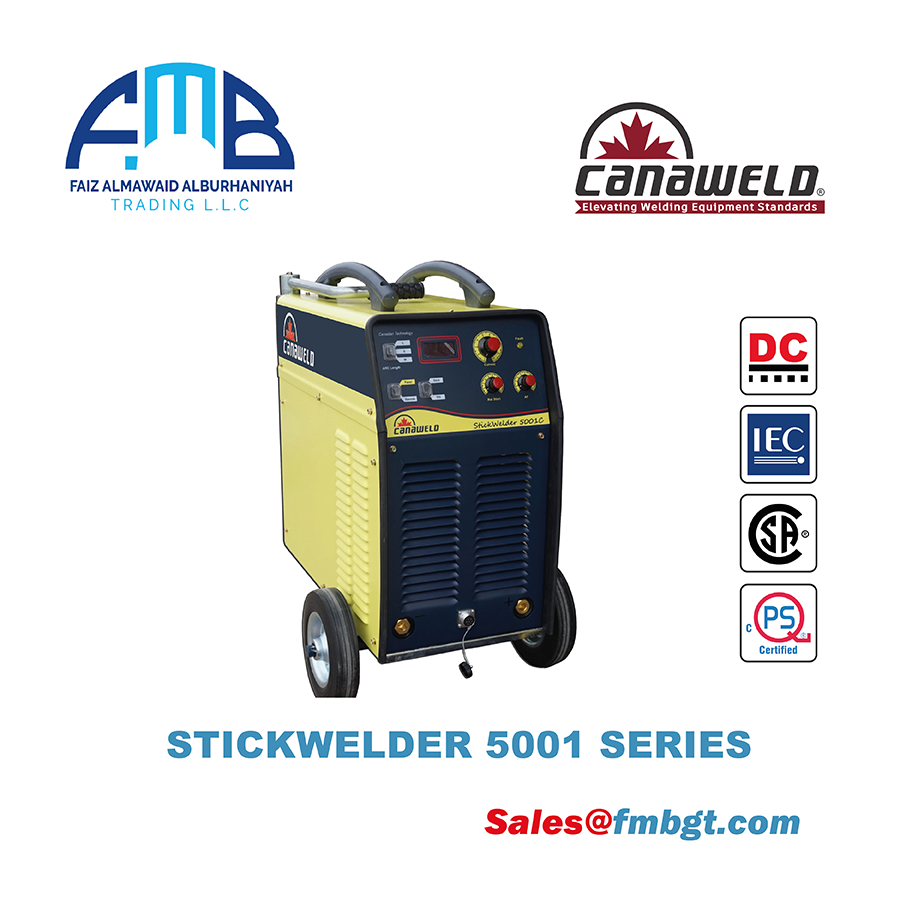

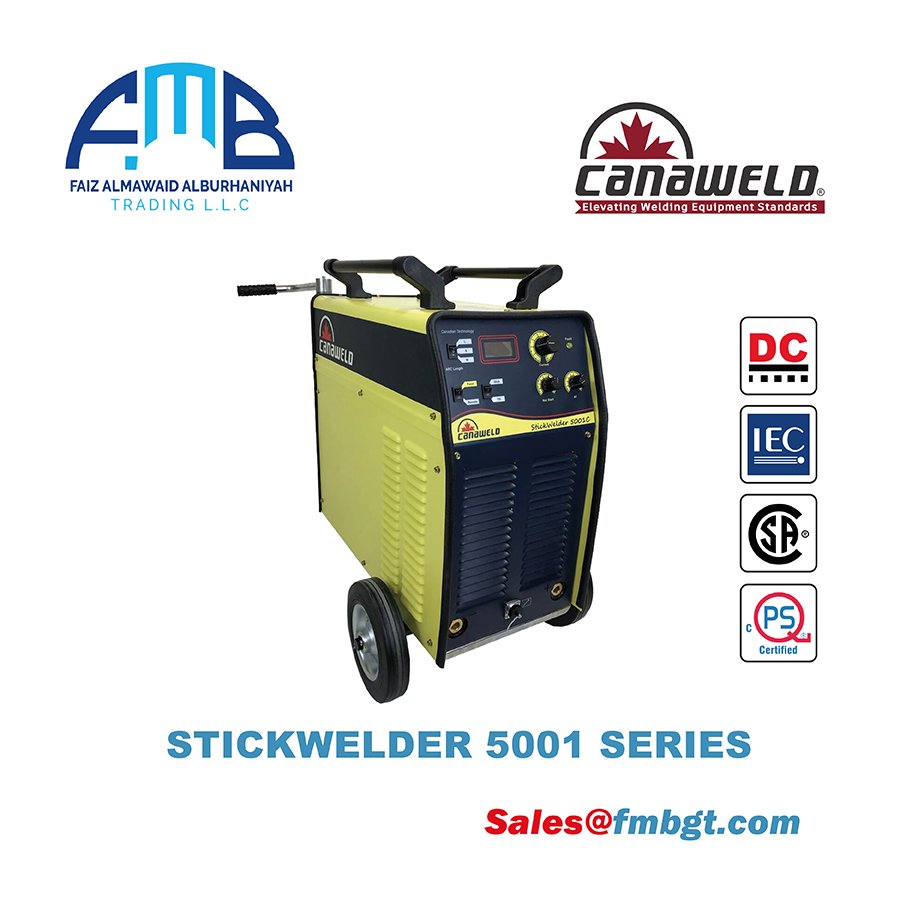

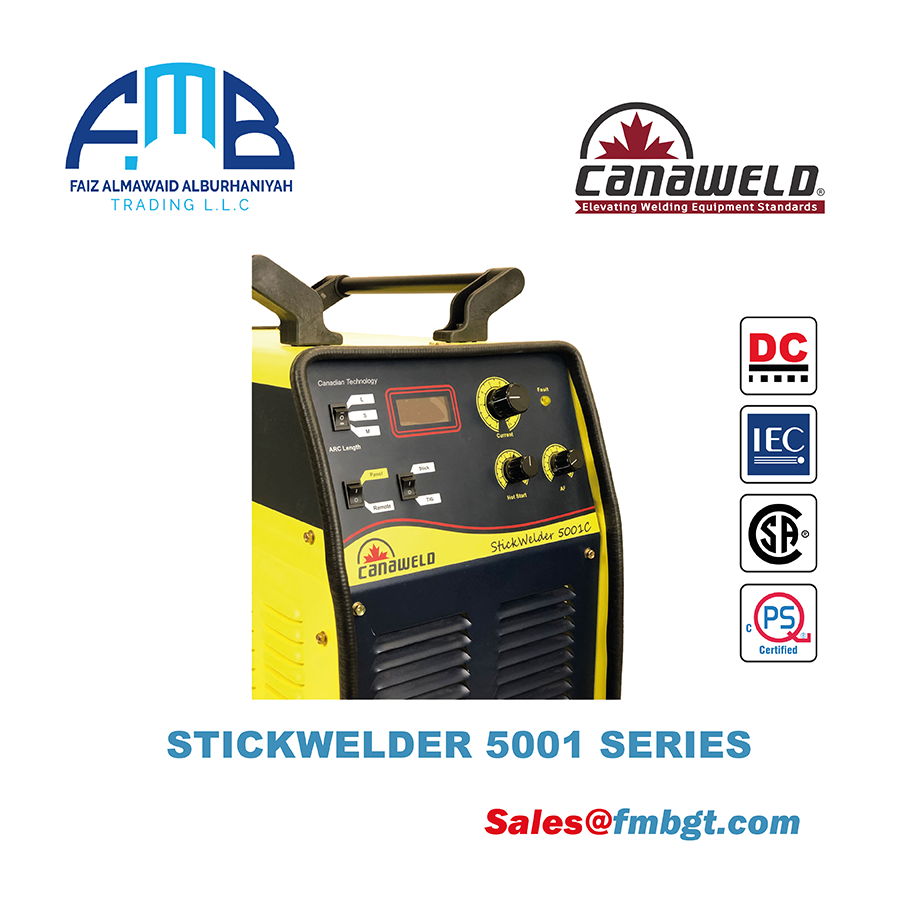

STICKWELDER 5001C SERIES

Product Code: GP08348

Enquiry Now

Description

The Stickwelder 5000 Series is a heavy-duty unit capable of both Stick Welding and TIG welding with a lift start. Its 400 Amps of power combined with a high-duty cycle and special dynamic characteristics for cellulosic and basic electrodes make the Stickwelder 5000 Series the perfect addition for any heavy-duty fabrication shops.

Features

Specially designed for tough conditions.
Heavy-duty power source.
Extremely rugged, reliable and easy-to-use.
Excellent welding characteristics for Sick welding with any kind of rods, especially cellulosic, TIG welding.
Arc length control insures facility of tack welding.
Low energy consumption.
High power at 100% Duty Cycle, tested in 140°F/60°C.
Suitable to be used with main cable lengths up to 330 feet(100 meters).
Automatic compensation of main voltage fluctuations within ± 20%.
Pre-set of current on digital display, digital Ammeter and Voltmeter.
Possibility of activating the VRD function.
Generator adapted.
Comprehensive 4-Year Warranty.

Specifications

STICKWELDER 5000 Series Technical Specification	STICKWELDER 5001C		STICKWELDER 5001VC
Process	Stick Electrode	TIG(Lift)	Stick Electrode	TIG(Lift)
Input Voltage Range(Three Phase, 50/60 Hz) *(Three Phase 230 /400/ 440 V as option)	380 V±15%		(400/440/460/480 V)±10%
	Parameters In 380 V±15% :		Parameters In 460 V ±15% :
Primary Current@Max Welding Current	36 A	26 A	26 A	21.5 A
Maximum Primary Effective Current(I1 eff max)	27 A	19.5 A	23 A	18.5 A
Welding Current Range	20-400 A	20-400 A	20-400 A	20-400 A
Duty Cycle @ Maximum Welding Current in 104° F(40° C)	40%(400 A)	40%(400 A)	55%(400A)	60%(400A)
Welding Current @ 100% Duty Cycle in 104° F(40° C)	330 A @ 100%	330 A @ 100%	360 A @ 100%	370 A @ 100%
Welding Current @ 60% Duty Cycle in 104° F(40° C)	350 A @ 60%	350 A @ 60%	390 A @ 60%	400 A @ 60%
Open Circuit Voltage : Volt	80V DC	80 V DC	80 V DC	80 V DC
Output Voltage Range : Volt	20.8-36 V	10.8-26 V	20.8-36 V	10.8-26 V
Weight : lb(Kg)	117 lb(53 Kg)		126 lb(57 Kg)
Dimensions Including Handle(D , W , H): inch(mm)	26 x 17.7 x 28 inch / 660 x 450 x 715(mm)
