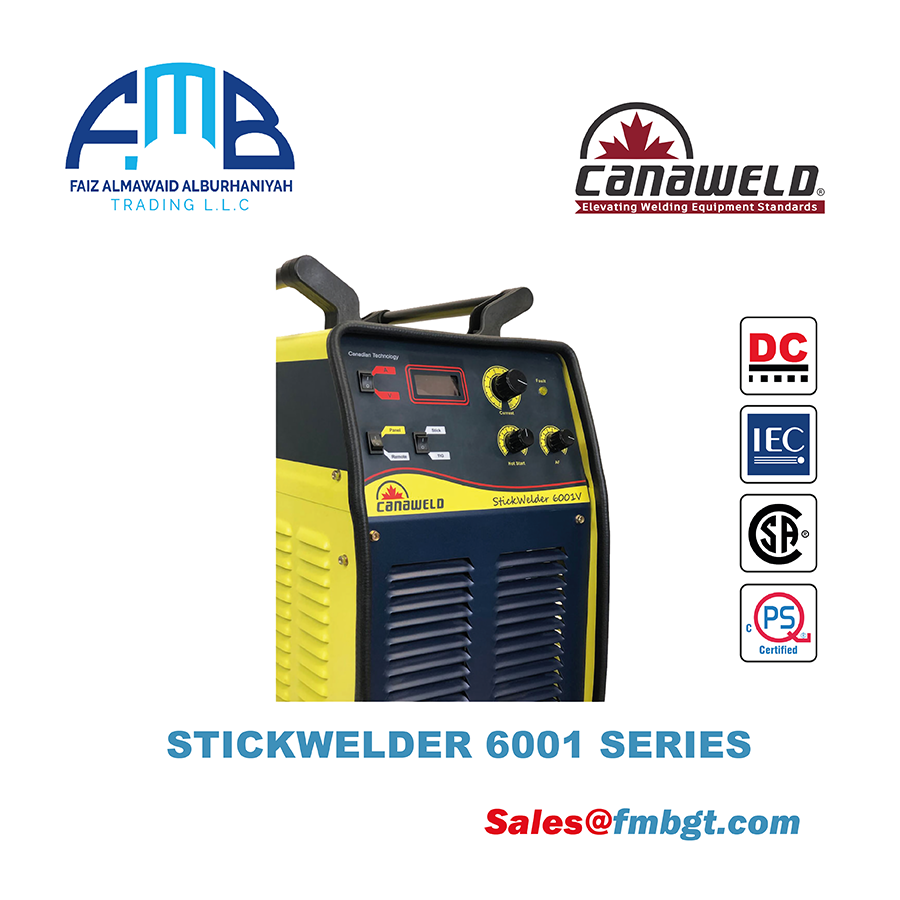

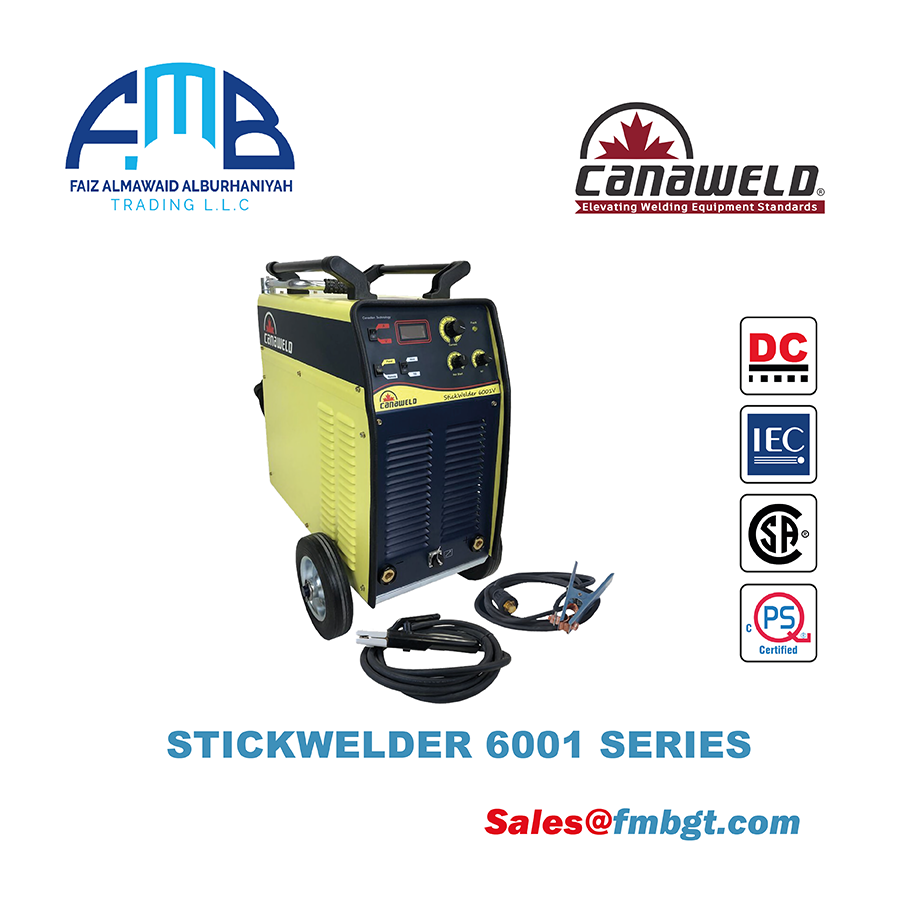

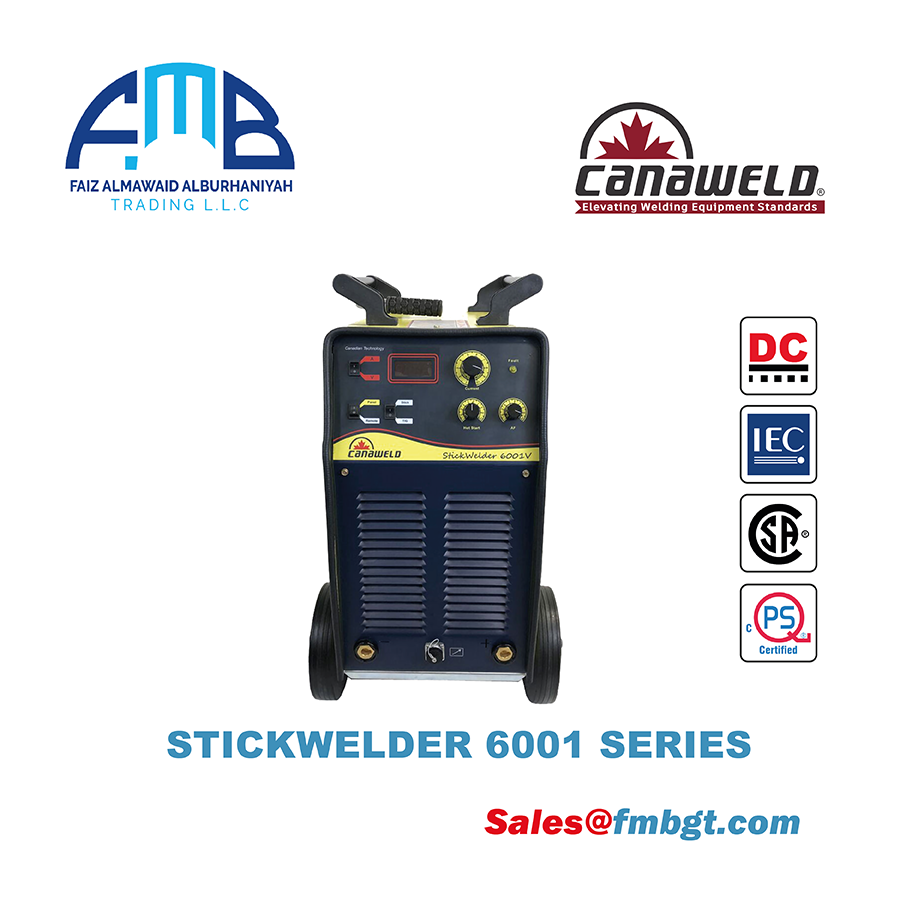

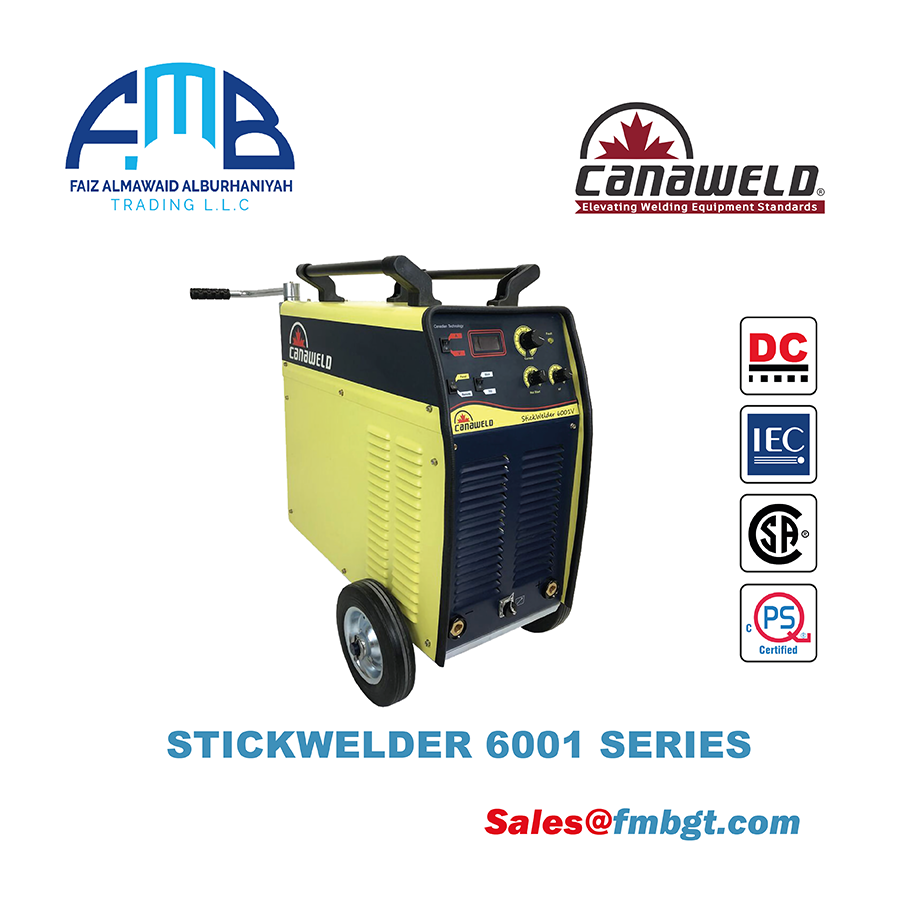

STICKWELDER 6001 SERIES

Product Code: GP08347

Enquiry Now

Description

The Stickwelder 6000 is an extra heavy-duty unit capable of both Stick Welding and TIG welding with a lift start. Designed for extra heavy fabrication projects. Its 500 Amps of power combined with a 100% duty cycle makes the Stickwelder 6000 Series the perfect machine for extra heavy-duty steel fabrication in tough conditions.

Features

Specially designed for tough conditions.
Extra heavy-duty power source.
Extremely rugged, reliable and easy-to-use.
Excellent welding characteristics when Stick welding with any kind of rods.
Ideal for Gouging and TIG Process.
Low energy consumption.
High power at 100% Duty cycle, tested in 104°F/40°C and 140°F/60°C.
Suitable to be used with main cable lengths up to 330 feet(100 meters).
Automatic compensation of main voltage fluctuations within ±20%.
Pre-set of current on digital display, digital Ammeter and voltmeter.
Possibility of activating the VRD function.
Comprehensive 4-Year Warranty.

Specifications

STICKWELDER 6000 Series Technical Specification	STICKWELDER 6001		STICKWELDER 6001V
Process	Stick Electrode	TIG(Lift)	Stick Electrode	TIG(Lift)
Input Voltage Range(Three Phase, 50/60 Hz) *(Three Phase 230 /400/ 440 V as option)	380 V±15%		(400/440/460/480 V)±10%
	Parameters In 380 V±15% :		Parameters In 460 V ±15% :
Primary Current@Max Welding Current	37 A	27 A	33 A	28 A
Maximum Primary Effective Current(I1 eff max)	37 A	27 A	29 A	24 A
Welding Current Range	20-500 A	20-500 A	20-500 A	20-500 A
Duty Cycle @ Maximum Welding Current in 104° F(40° C)	100%(500 A)	100%(500 A)	60%(500A)	60%(500A)
Welding Current @ 100% Duty Cycle in 104° F(40° C)	500 A @ 100%	500 A @ 100%	450 A @ 100%	450 A @ 100%
Welding Current @ 60% Duty Cycle in 104° F(40° C)	–	–	500 A @ 60%	500 A @ 60%
Open Circuit Voltage : Volt	84V DC	84 V DC	80 V DC	80 V DC
Output Voltage Range : Volt	20.8-40 V	10.8-30 V	20.8-40 V	10.8-30 V
Weight : lb(Kg)	128 lb(58 Kg)		136 lb(61.5 Kg)
Dimensions Including Handle(D , W , H): inch(mm)	26 x 17.7 x 28 inch / 660 x 450 x 715(mm)
