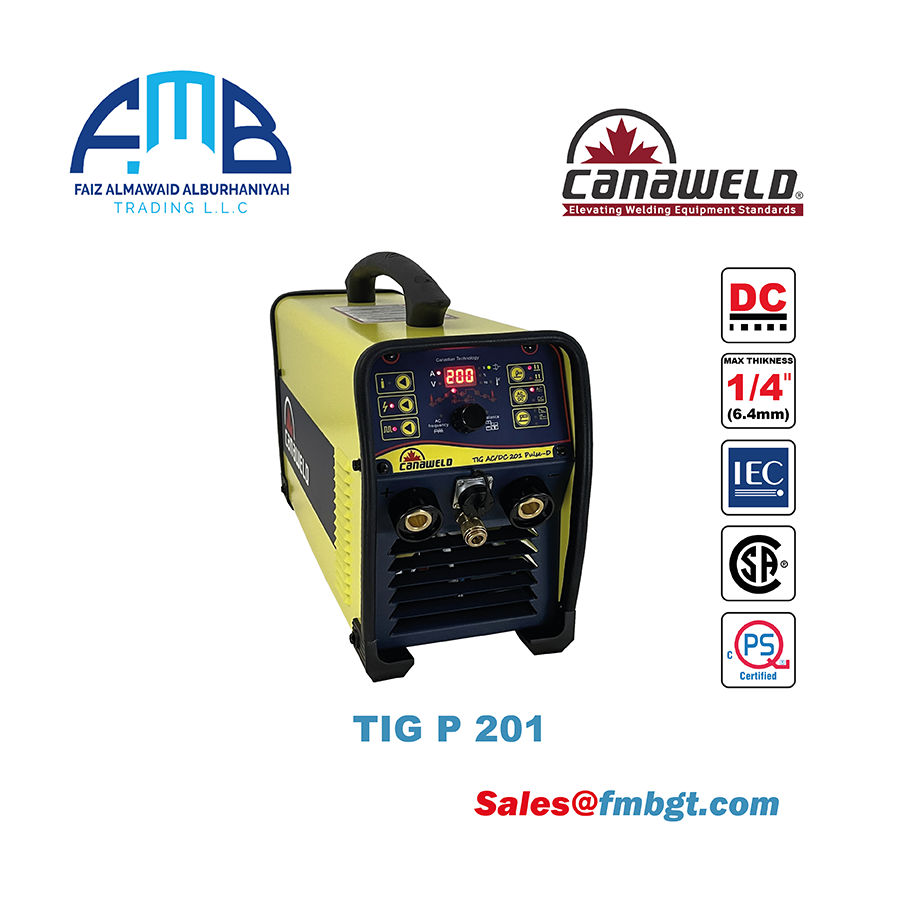

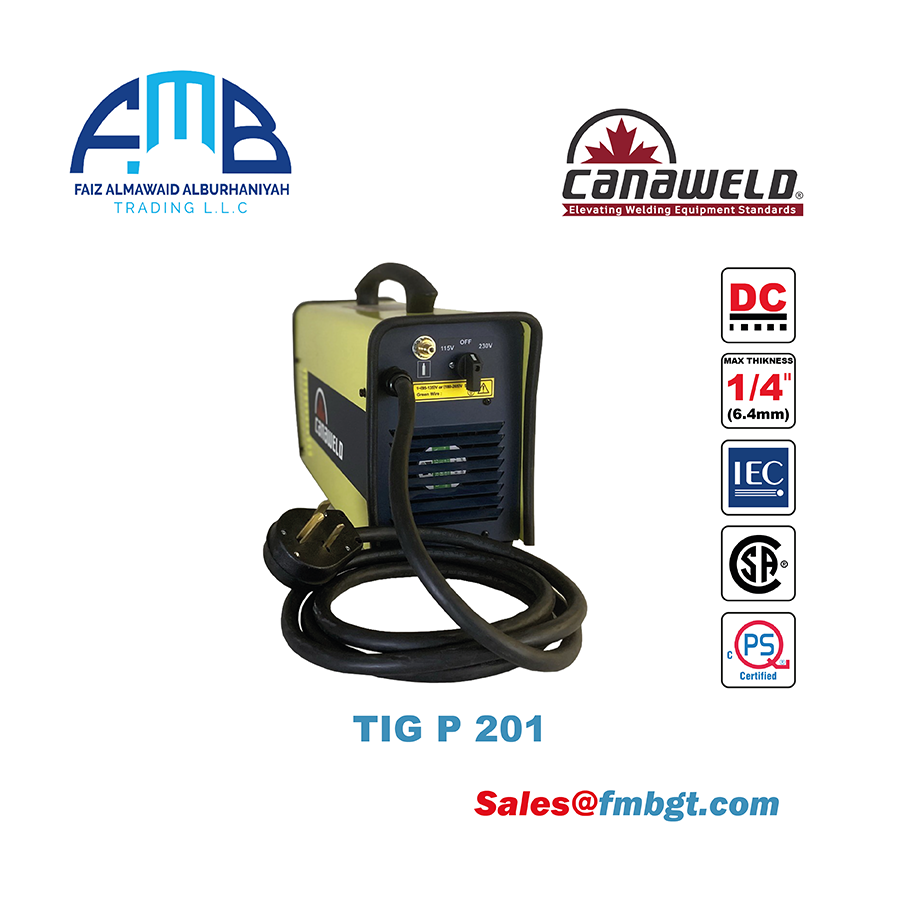

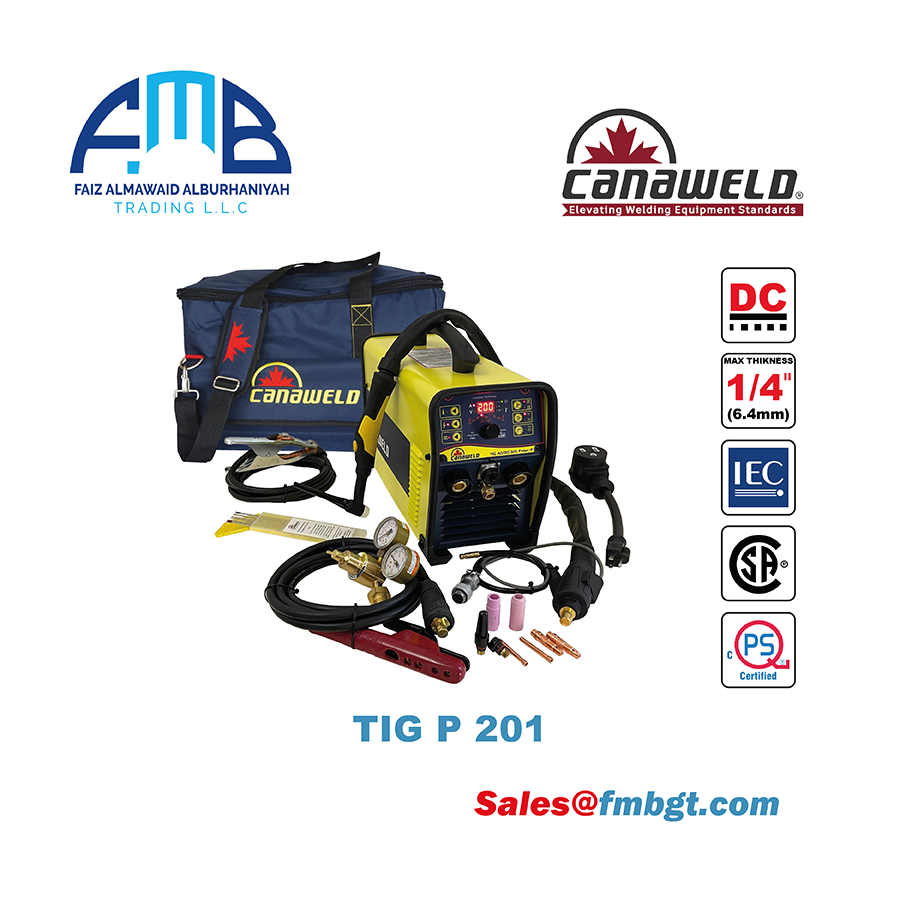

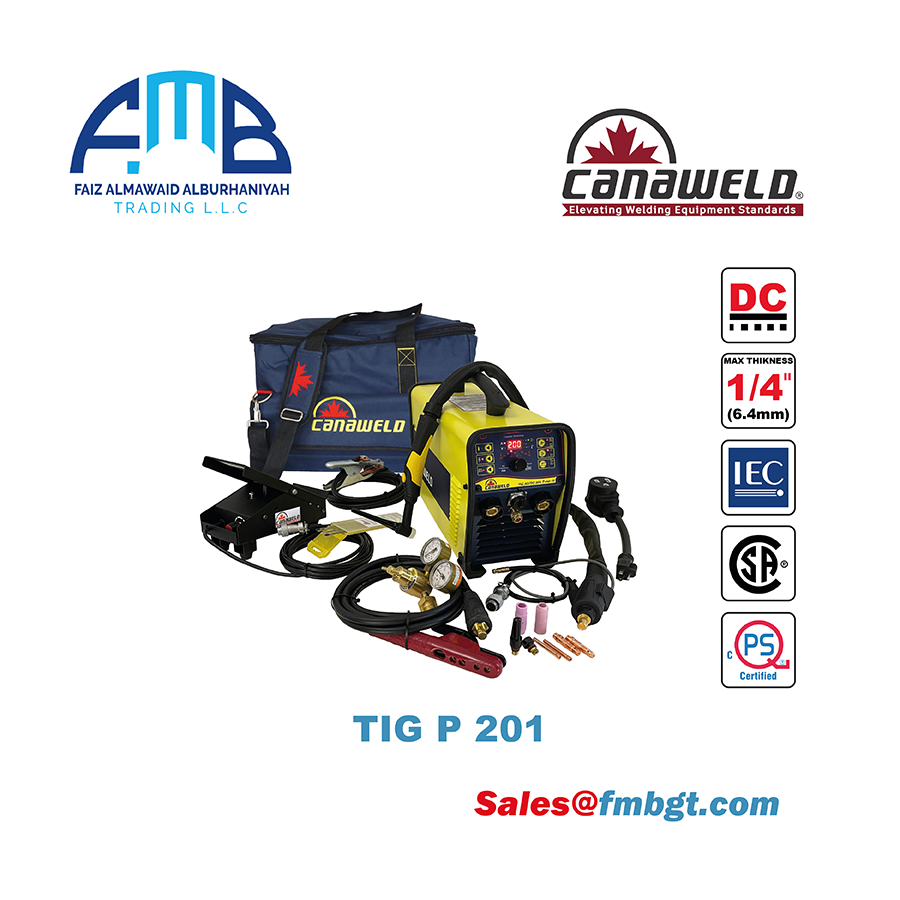

TIG P 201 - PORTABLE WELDING MACHINE

TIG P 201 - PORTABLE WELDING MACHINE

Product Code: GP08350

Enquiry Now
Description

The TIG P 201 is a powerful, portable and versatile welding machine. This unit is capable of either AC or DC TIG welding (stainless, mild steel and aluminum) or Stick welding. The pulse features of this machine combined with the HF start makes it the ideal choice for welders looking to perform high quality TIG welding on very thin materials with no distortion.



Features

  • AC/DC including all pulse parameters of TIG welding machine.
  • Tested in (104°F/40°C), designed for the toughest conditions.
  • Excellent welding quality of Aluminum, Stainless Steel and other material.
  • Ability to weld very thin materials especially aluminum.
  • Digital control of all welding parameters: Pre-Flow, Starting Current, Slope-Up, Welding current, Base current, Pulse Duration, Pulse frequency, Slope-Down, Crater arc current, Post Flow, AC Frequency, AC Balance Low energy consumption.
  • Generator compatible design.
  • Excellent welding characteristics in Stick mode with the most common rod in the market. (Electrodes 6010 and 6011 series are not recommended)
  • Digital ammeter and Hold Function of the last read value.
  • Automatic fan ensuring protection against overheating saving energy and less dust/debris entering the machine.
  • Adjustable Arc Force in Stick mode.
  • Metal face panel.
  • Comprehensive 4-Year Warranty.



specifications

Process TIG Stick TIG Stick
Input Voltage, Single Phase, 50/60 Hz 208 to 240 V(±10%) 105 to 120 V(±10%)
Primary Current@Max Welding Current AC 20.6 A 23.8 A 25.7 A 26.7 A
DC 22.3 A 26 A 28 A 27 A
Maximum Primary Effective Current (I1 eff max) AC 15.3 A 17.3 A 19 A 21.3 A
DC 11.3 A 15.6 A 21 A 19.1 A
Welding Current Range AC 10 – 200 A 10 – 170 A 10 – 140 A 10 – 100 A
DC 5 – 200 A 5 – 170 A 5 – 140 A 5 – 100 A
Welding Current and related Duty Cycle in 104° F (40° C) AC 200 A, 30% 170 A, 40% 140 A, 40% 100 A, 40%
170 A, 60% 140 A, 60% 120 A, 60% 90 A, 60%
160 A, 100% 130 A, 100% 110 A, 100% 80 A, 100%
DC 200 A, 20% 170 A, 20% 140 A, 35% 100 A, 35%
130 A, 60% 120 A, 60% 120 A, 60% 80 A, 60%
120 A, 100% 110 A, 100% 110 A, 100% 70 A, 100%
Duty Cycle @ Maximum Welding Current in 104° F (40° C) AC 30% 40% 40% 40%
DC 20% 20% 35% 35%
Welding Current @ 100% Duty Cycle in 104° F (40° C) AC 160 A 130 A 110 A 80 A
DC 110 A 110 A 110 A 70 A
Pulse Functions AC Pre Flow, Starting Current, Upslope, Welding current, Base current, Pulse Duration,
Pulse frequency, Downslope, Crater arc current, Post Flow, AC Frequency, AC Balance
Pulse Functions DC Pre Flow, Starting Current, Upslope, Welding current, Base current, Pulse Duration,
Pulse frequency, Downslope, Crater arc current, Post Flow
Weight : lb. (Kg) 29 lb. (13 kg)
Dimensions Including Handle (D, W, H) : inch (mm) 20 x 7 x 13 inch (510 X 180 X 330 mm)
