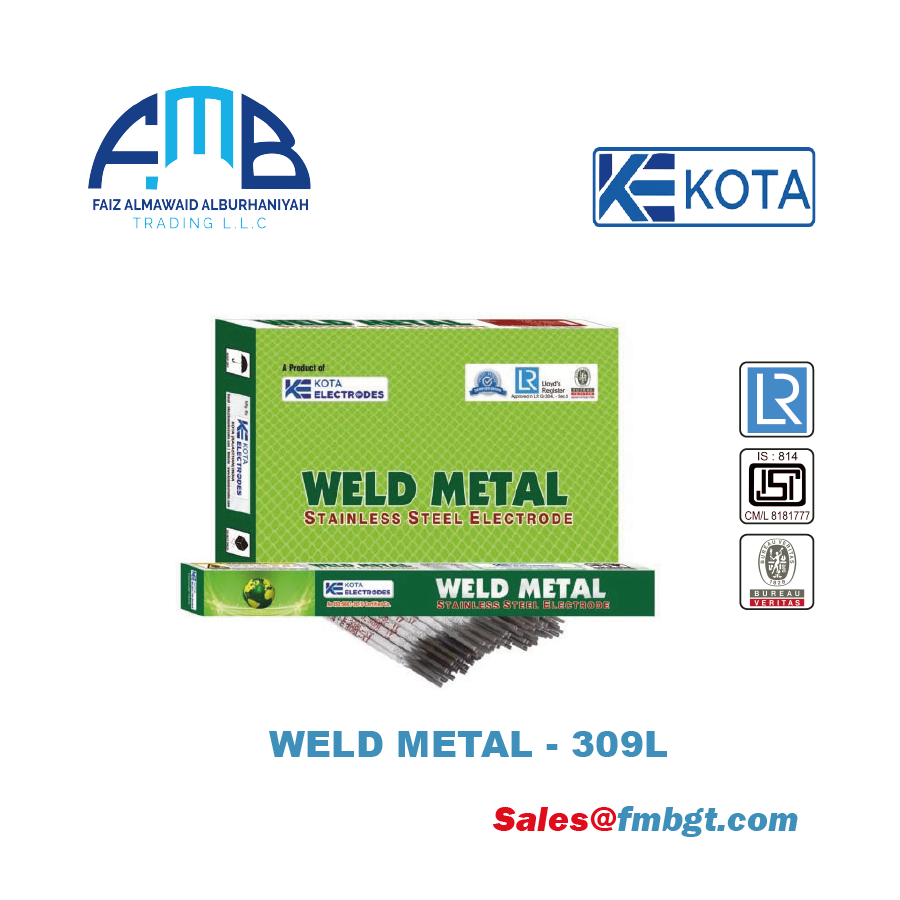

WELD METAL 309L is a stainless steel electrode suitable for welding AISI 309-grade stainless steel in cast or wrought form. It is specially designed to yield a weld deposit of extra-low carbon and 24Cr–12Ni-grade stainless steel. The weld metal is highly resistant to cracks, corrosion, and scaling at temperatures up to 1100 °C. It operates well on AC or DC (+) in all conventional positions. It is easily striking or re-striking,with very little spatter, and easily removes slag with an excellent bead appearance and radiographic quality weld.



APPLICATIONS

WELD METAL 309L is suitable for welding of AISI-grade steel (309L type), straight chrome steel, and the clad side of stainless clad steels; welding of similar and dissimilar steel, e.g., stainless steel to mild steel; and also for extra-low-carbon stainless steel.



CHEMICAL ANALYSIS OF ALL WELD METAL

C%	Mn%	Si%	Cr%	Ni%
0.04 max	0.5-2.5	0.9 max	22-25	12-14
Mo%	Cu%	S%	P%
0.75 max	0.75 max	0.03 max	0.04 max



MECHANICAL PROPERTIES OF ALL WELD METAL

Ultimate Tensile Strength	Elongation%
550-650 N /mm2	30-40%



SPECIAL CHARACTERISTICS : DELTA FERRITE: 5 to 10 FN



CURRENT & CONDITIONS : USE AC (30 OCV)OR DC (+)

SIZE (mm)	2.50x350	3.15x350	4.00x350	5.00x350
Amps	60-80	80-110	110-140	150-180
