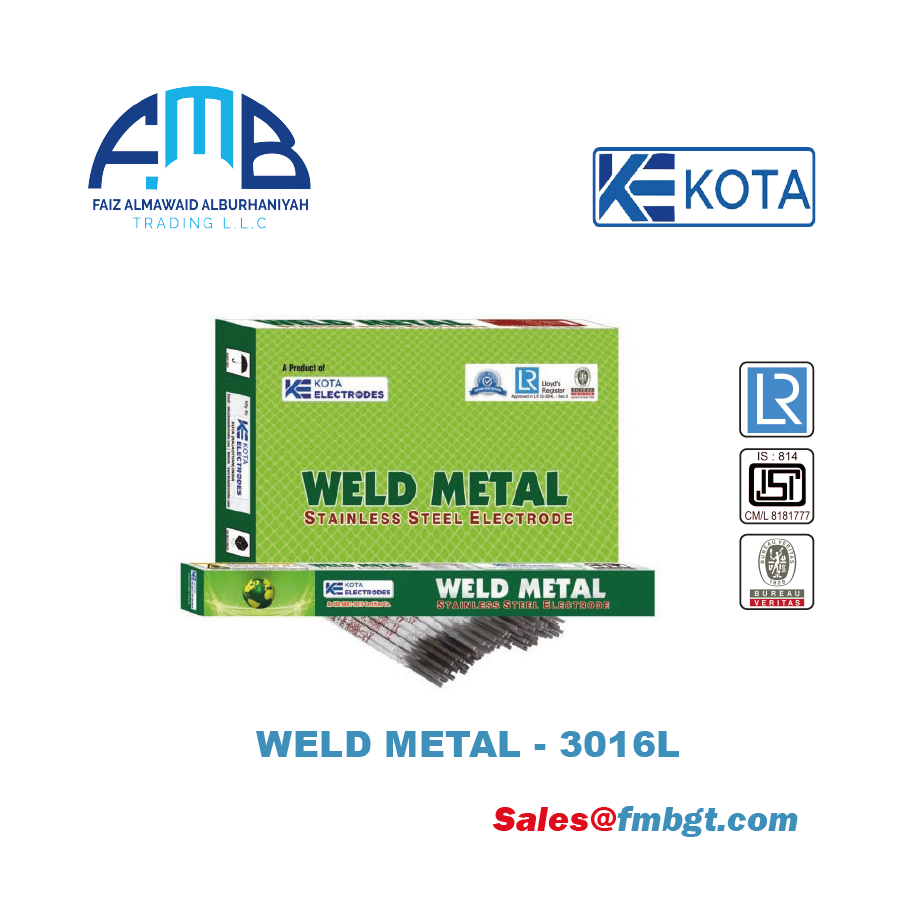

WELD METAL 316L is a rutile type of stainless steel electrode suitable for welding AISI 316L and 317L equivalent-grade stainless steel. It is specially designed to yield a weld deposit of extra-low carbon and 20Cr-14Ni-grade stainless steel. The presence of molybdenum provides creep resistance to cracks, corrosion, and scaling at high temperatures up to 850°C. It operates well on AC or DC (+) in all conventional positions. It is easily striking or re-striking, with very little spatter, and easily removes slag with an excellent bead appearance with a radiographic quality weld.



APPLICATIONS

WELD METAL 316L is suitable for welding AISI-grade steel as 316L, 317L type, or equivalent grade, as well as welding low-carbon, high-molybdenum bearing austenitic stainless steel. Suitable for chemical, textile, milk plant, fertilizer plant, oil plant, and paint industry plants.



CHEMICAL ANALYSIS OF ALL WELD METAL

C%	Mn%	Si%	Cr%	Ni%
0.04 max	1.5-2.5	0.9 max	17-20	11-14
Mo%	Cu%	S%	P%
2-3	0.75 max	0.03 max	0.04 max



MECHANICAL PROPERTIES OF ALL WELD METAL

Ultimate Tensile Strength	Elongation%
510-610 N /mm2	30-40%



SPECIAL CHARACTERISTICS : DELTA FERRITE : 3 to 8 FN



CURRENT & CONDITIONS : USE AC 50 (OCV) OR DC (+)

SIZE (mm)	2.50x350	3.15x350	4.00x350	5.00x350
Amps	60-80	80-110	110-140	150-180
