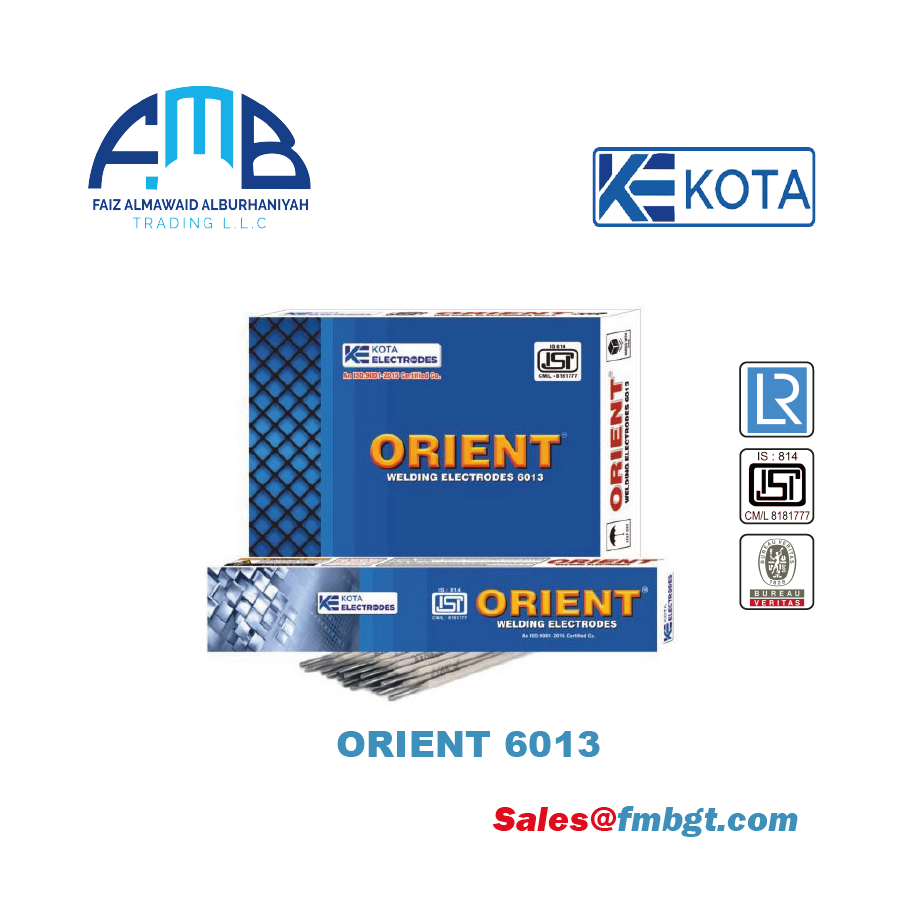

WELD METAL 6013 is a medium-heavy, rutile-coated, general-purpose mild steel welding electrode specially manufactured for RADIOGRAPHIC quality welds. Low spatter, adequate penetration, easy slag removal (self-pealing slag), and finely rippled, smooth beads are the special features of Weld Metal E6013 electrodes. Mechanical properties are up to the mark and consistent. It is easy to operate on an AC and a DC welding power source in all conventional welding positions.



APPLICATIONS

Railway Wagons, Boilers, Fire Boxes, Auto Bodies, Ship building, Structural works, Machine Base & Machinery
Construction, Pipe Lines, Storage Tanks, Bridges, Building Construction Works and mild steel furniture etc.



CHEMICAL ANALYSIS OF ALL WELD METAL

Carbon%	Manganese%	Silicon%	Sulphur%	Phosphorous%
0.12 max	0.38-0.62	0.35 max	0.04 max	0.04 max



MECHANICAL PROPERTIES OF ALL WELD METAL

Yield strength	Ultimate Tensile Strength	Elongation%	CVN Impact at - 0°C
330 N/mm2 (Min)	410-540 N /mm2	22-28%	50-70 joules



CURRENT & CONDITIONS : USE AC ( 50 OCV )OR DC ( +/ - )

SIZE (mm)	2.50x350	3.15x350	3.15x450	4.00x350	4.00x450	5.00x450
Amps	60-90	100-140	100-140	140-200	140-200	180-240
