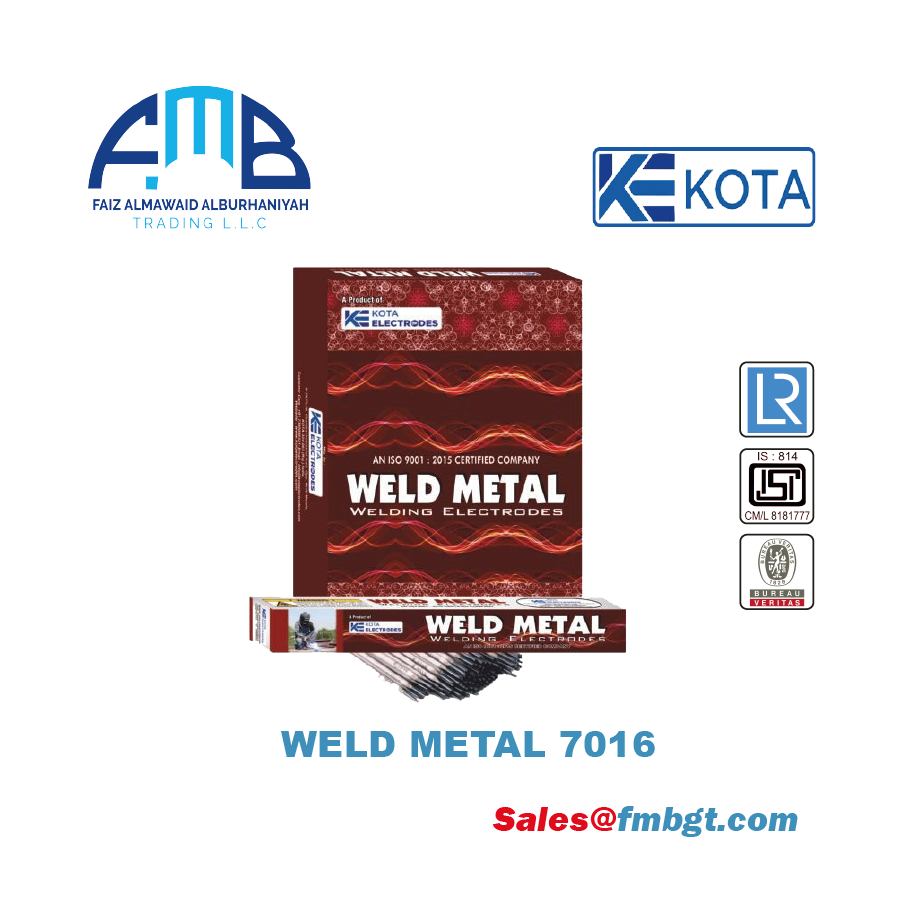

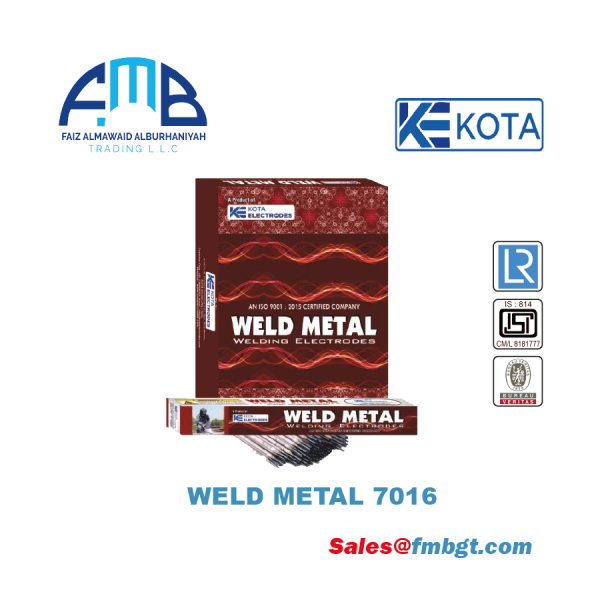

WELD METAL 7016 is a basic coated, low-hydrogen electrode, specially designed for welding medium-high tensile steels of grades A, D, and E, as well as any type of cast steel, and specially designed for welding mild steel to cast steel with RADIOGRAPHIC quality weld. It has excellent ductility and notch toughness down to minus 30 °C, which are the greater and more special characteristics of WELD METAL 7016 electrodes. The typical hydrogen content is 5 ml/100 grams to save the weld metal from cracking and provide good strength for the job.



APPLICATIONS

WELD METAL 7016, is best to weld the following as: Welding of HT52W and high tensile grade steels,  Cast steels,  joining to mild steel to cast steel and used the buffer layer before hard surfacing.



CHEMICAL ANALYSIS OF ALL WELD METAL

Carbon%	Manganese%	Silicon%	Sulphur%	Phosphorous%
0.10 max	0.8–1.2	0.6 max	0.03 max	0.03 max



MECHANICAL PROPERTIES OF ALL WELD METAL

Yield strength	Ultimate Tensile Strength	Elongation%	CVN Impact at -30°C
360 N/mm2 min	510-650 N/mm2	26% on 5D (min.)	50-90 Joules



CURRENT & CONDITIONS : USE AC - 70 (OCV) OR DC (+)

SIZE (mm)	2.50x350	3.15x450	4.00x450	5.00x450
Amps	70-100	120-160	160-220	220-280
