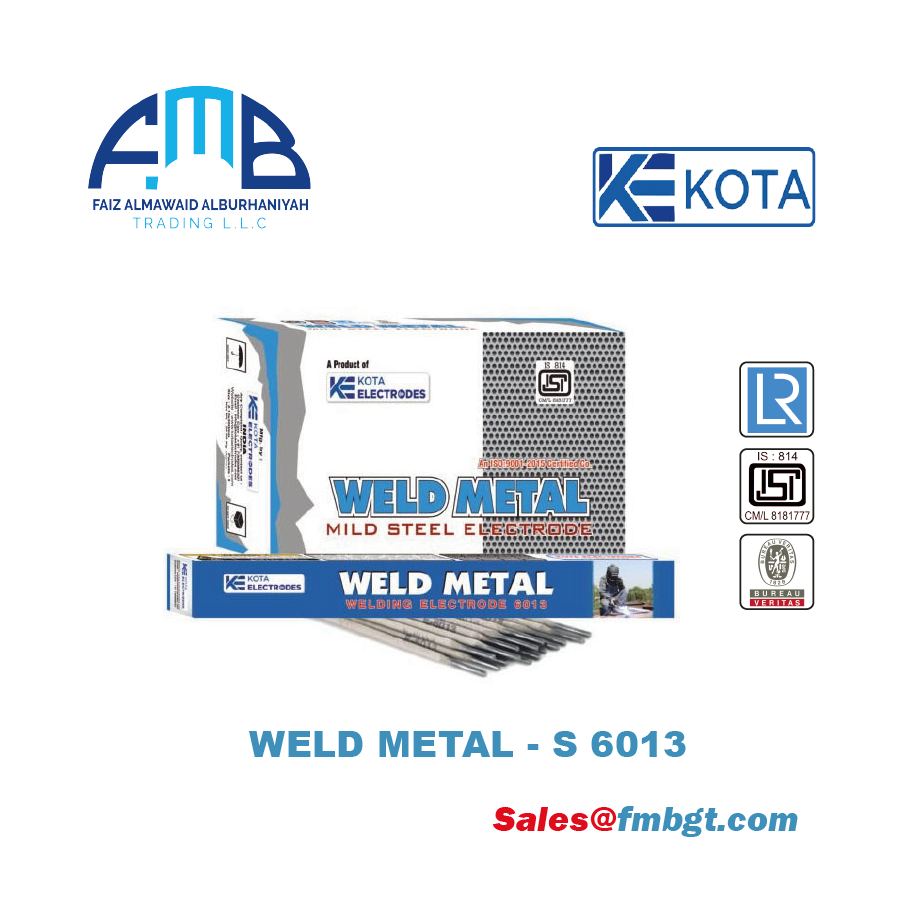

WELD METAL-S is a medium-heavy, rutile-coated, general-purpose mild steel welding electrode specially manufactured for RADIOGRAPHIC quality welds. Low spatter, adequate penetration, easy slag removal (self-pealing slag), and finely rippled, smooth beads are the special features of Weld Metal-S electrodes. Mechanical properties are very good and consistent. It is easy to operate on an AC as well as a DC welding power source in all conventional welding positions.



APPLICATIONS

Railway Wagons, Boilers, Fire Boxes, Auto Bodies, Ship building, Heavy Structural works, Heavy Machine Base & Machinery Construction, Pipe Lines, Storage Tanks, Bridges, Building Construction Works, Mild Steel furniture etc.



CHEMICAL ANALYSIS OF ALL WELD METAL

Carbon%	Manganese%	Silicon%	Sulphur%	Phosphorous%
0.12 max	0.65max	0.40 max	0.045 max	0.045 max



MECHANICAL PROPERTIES OF ALL WELD METAL

Yield strength	Ultimate Tensile Strength	Elongation%	CVN Impact at 0°C
330 N/mm2 min	410-540 N /mm2	22-28%	50-70 joules



CURRENT & CONDITIONS : USE AC 50 (OCV) OR DC (+/ -)

SIZE (mm)	2.50x350	3.15x350	3.15x450	4.00x350	4.00x450	5.00x450
Amps	60-90	100-140	100-140	140-200	140-200	180-240
