WELDING MACHINE MIG/MMA 201

MIG/MMA 201 - SINGLE PHASE WELDING MACHINE

Product Code: GP08345

Enquiry Now

Description

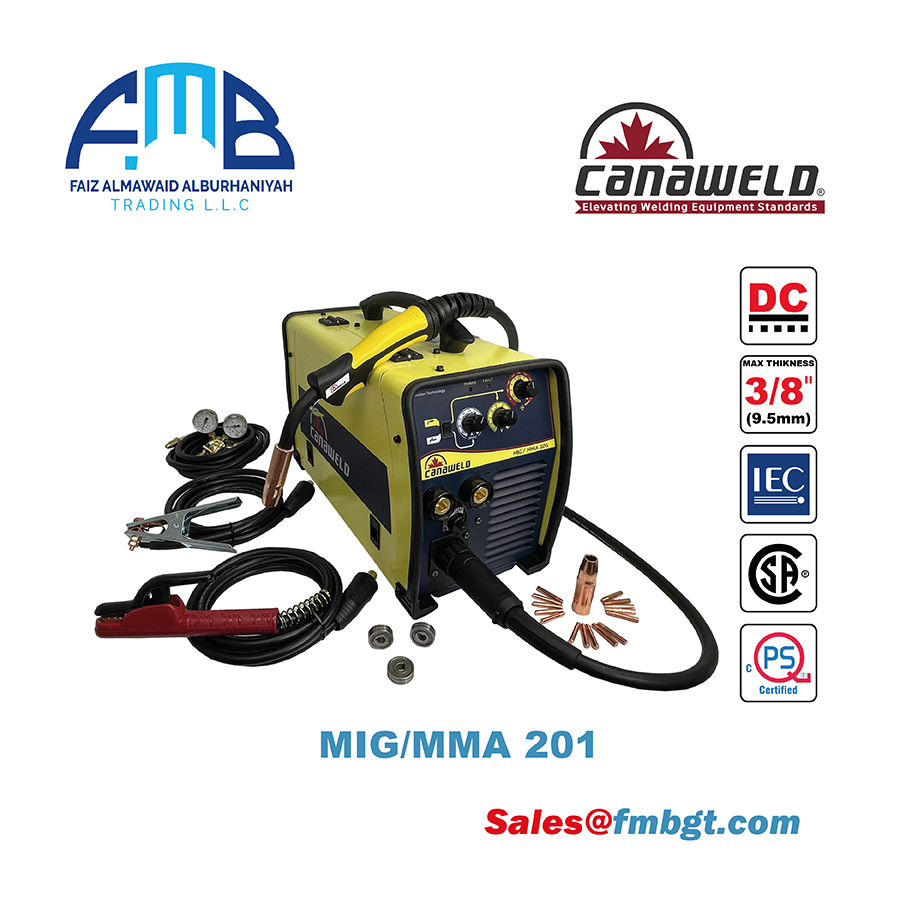

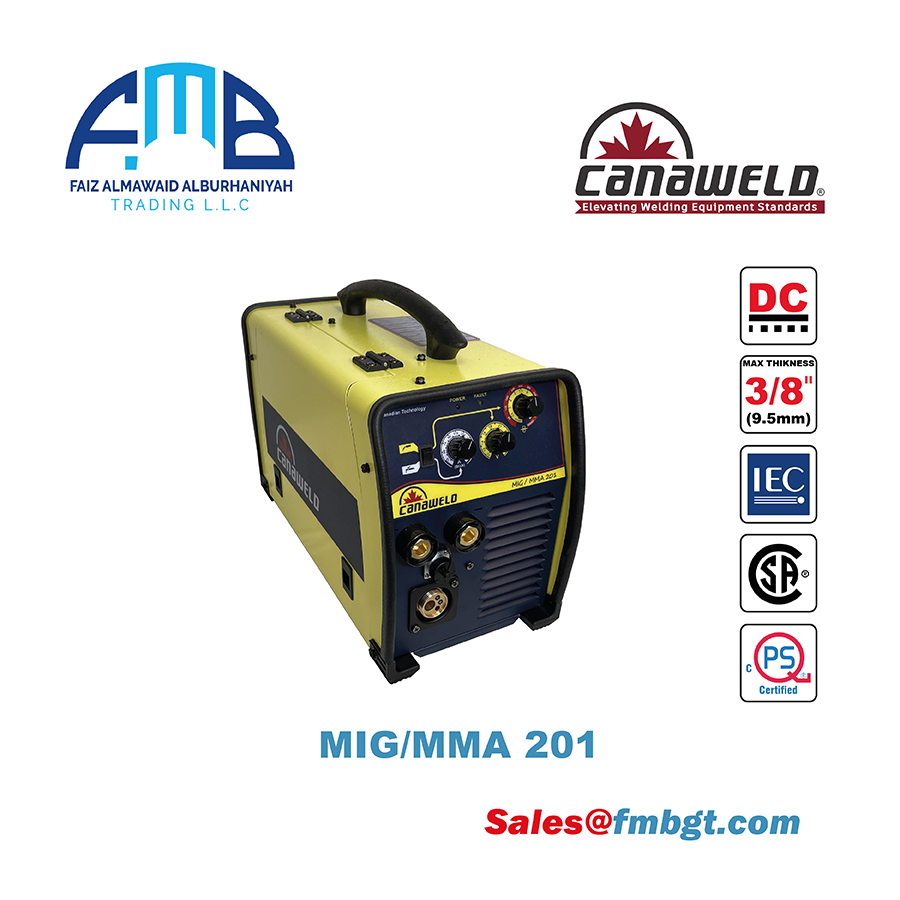

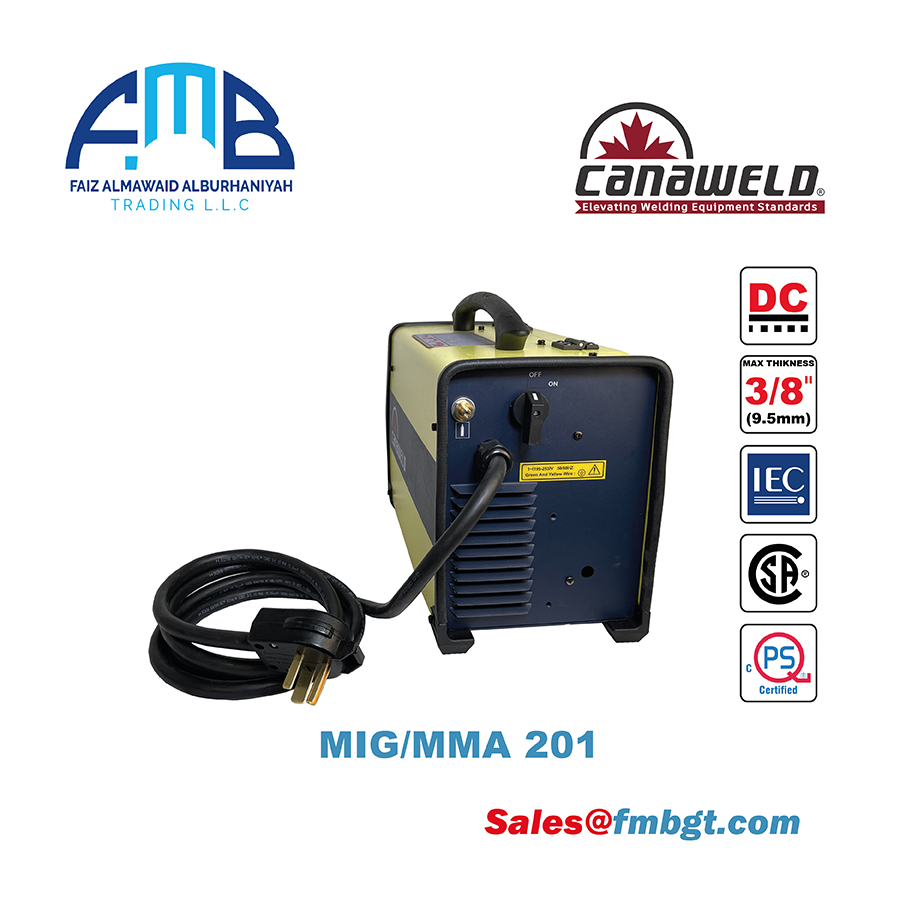

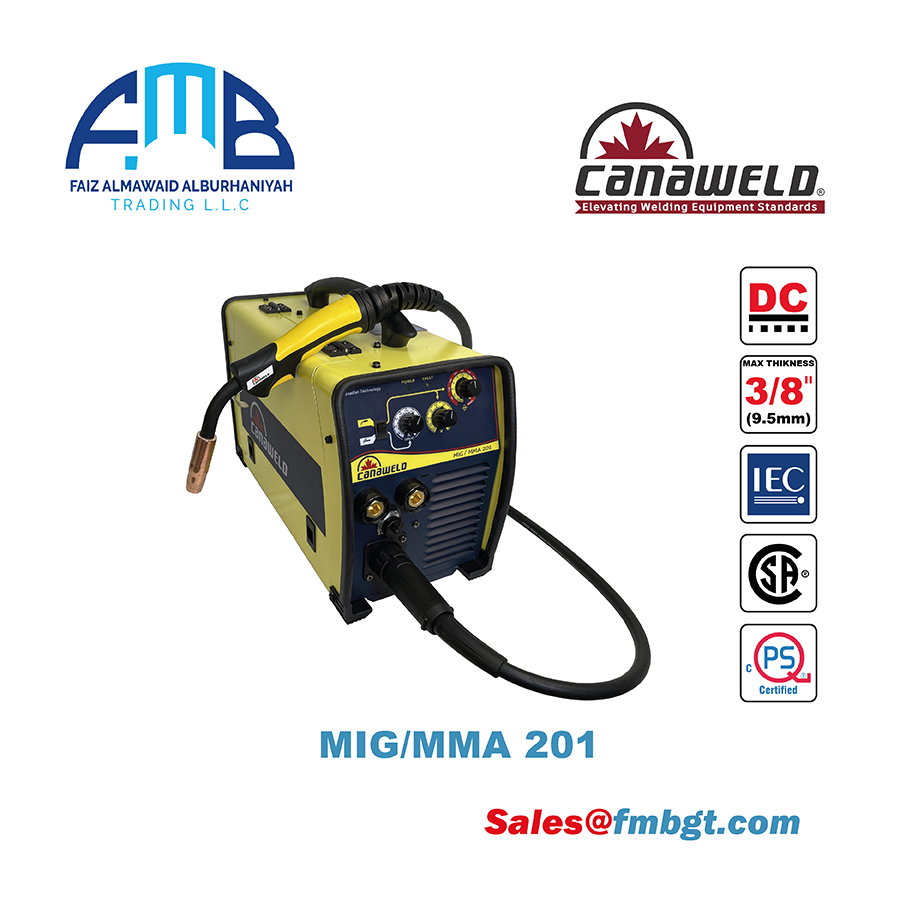

The MIG/MMA 201 is a portable, powerful and versatile MIG/Stick Welding machine. This unit can weld up to 3/8-inch steel in either MIG mode or in the SMAW setting. Capable of running 0.023–0.045-inch MIG wire or up to 3/16-inch SMAW rods with a very stable arc (please check the technical sheet for more details). These characteristics make the MIG/MMA 201 the perfect choice for light to medium duty welding jobs whether in your garage, at home or at your local auto body shop.

Features

High power output, 170A @ 100% Duty Cycle & 200A @ 35% Duty Cycle.
Inverter power source with optimal welding characteristics in MIG and Stick.
Automatic compensation for main power fluctuations within ± 20%.
Ability to use up to 165 feet (50 meters) leads without any power loss at the weld.

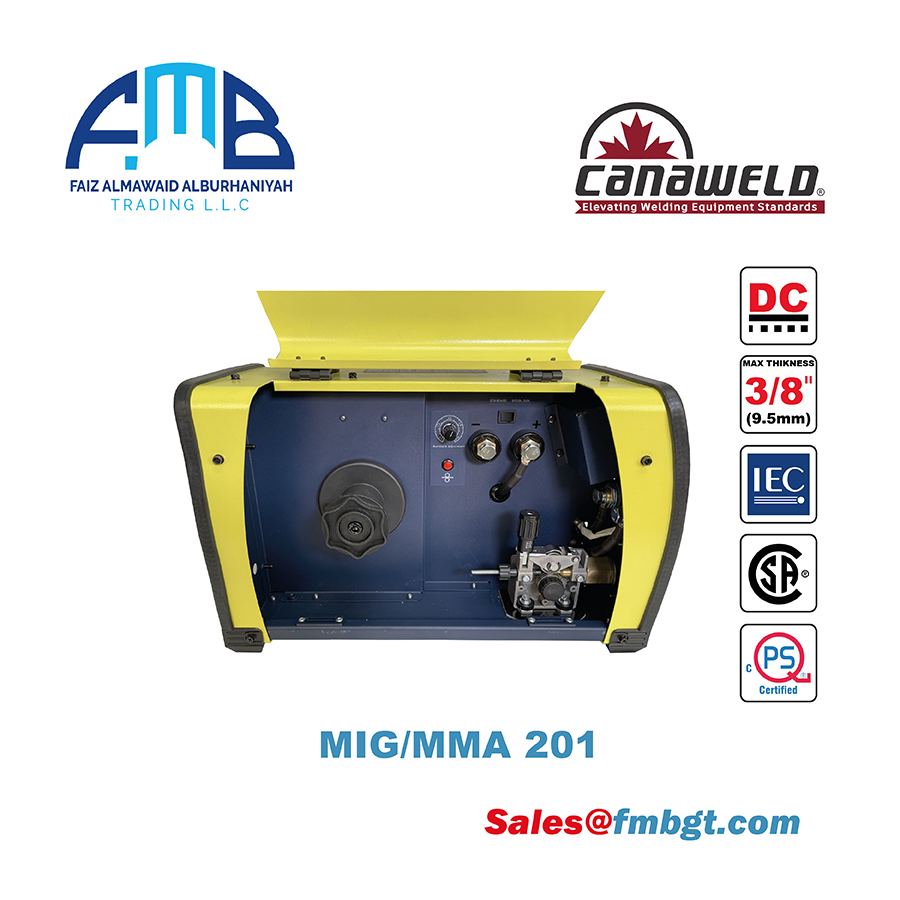

High grade dual drive roll system for precise and constant wire feed that prevents bird nesting.
Welds up to 3/8” steel and aluminum.
Graduated knob to achieve the most accurate settings.
Automatically controls wire speed by voltage feedback to give and extremely stable arc with minimal spatter.
Fan cooled and thermally protected against overheating.
Built-in polarity changeover feature for most common gas and gasless wires.
8-inch (203 mm) Wire Spool Size and optional 12-inch (305 mm).
Comprehensive 4-Year Warranty.

Specifications

Process	MIG/ Flux cored	Stick Electrode
Input Voltage, Single Phase, 50/60 Hz	208 to 240 V(±10%)
Primary Current@Max Welding Current	37 A	38 A
Maximum Primary Effective Current(I1 eff max)	27 A	29 A
Technology of Adjustment(Maual / Synergic)	Manual
Welding Current Range	30-200 A	10-200 A
Duty Cycle @ Maximum Welding Current in 104° F(40° C)	35%(200 A)	35%(200 A)
Welding Current @ 100% Duty Cycle in 104° F(40° C)	170 A	160 A
Welding Current @ 60% Duty Cycle in 104° F(40° C)	190 A	180 A
Open Circuit Voltage : Volt	52 V
Output Voltage Range : Volt	15.5-24 V	20.4-28 V
Solid Steel Wire Size Range : inch(mm)	0.023-0.040 in(0.6-1 mm)
Stainless steel Wire Size Range : inch(mm)	0.023-0.040 in(0.6-1 mm)
Flux-cored Wire Size Range : inch(mm)	0.030-0.045 in(0.8-1.2 mm)
Aluminum Wire Size Range : inch(mm)	0.030-0.045 in(0.8-1.2 mm)
Max Wire Feeder speed : ipm(m/min)	630 ipm(16 m / min)
Wire Feeder Mechanism Material	Metal
Wire Spool Size : inch(mm)	8 or 12 inch(203 or 305 mm)
Weight : lb(Kg)	38 lb(17 Kg)
Dimensions Including Handle(D , W , H): inch(mm)	19.6 x 9.25 x 14.76 inch(500 x 235 x 375 mm)
